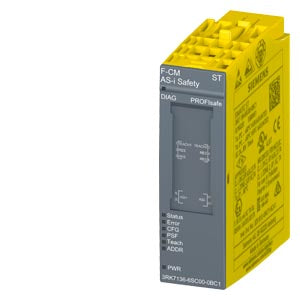

Siemens - 3RK7136-6SC00-0BC1
Siemens - 3RK7136-6SC00-0BC1
Regular price
€268,30 EUR
Regular price
Sale price
€268,30 EUR
Couldn't load pickup availability
Low stock: 4 left
SIMATIC ET 200SP F-CM AS-i Safety ST
| General technical data | |||
| product designation | F-CM AS-i Safety ST | ||
| product type designation | ASIsafe communication module | ||
| protection class IP | IP20 | ||
| type of voltage supply | via AS-i | ||
| consumed current | |||
| from profile conductors of the AS-Interface | |||
| at 30 V maximum | mA | 70 | |
| at 24 V with AS-i Power24V maximum | mA | 70 | |
| from backplane bus maximum | mA | 30 | |
| power loss [W] | W | 2.1 | |
| insulation voltage rated value | V | 500 | |
| display version as status display by LED | DIAG STATUS ERROR CFG PSF TEACH ADDR PWR | ||
| type of configuration of the AS-Interface | STEP7 Safety | ||
| Communication/ Protocol | |||
| version of the AS-Interface specification | V 3.0 | ||
| type of data transmission | ET 200SP backplane bus | ||
| number of interfaces as AS-Interface | 1 | ||
| number of interfaces other | 1 | ||
| protocol is supported PROFIsafe protocol | Yes | ||
| product function suitable for AS-i Power24V | Yes | ||
| Inputs/ Outputs | |||
| access to digital I/O data | Via process image | ||
| Mechanical data | |||
| width | mm | 20 | |
| height | mm | 73 | |
| depth | mm | 58 | |
| fastening method | pluggable on terminal module | ||
| module format | ET 200SP design | ||
| Ambient conditions | |||
| ambient temperature | |||
| if installed on horizontal mounting rail during operation | °C | 0 ... 60 | |
| if installed on vertical mounting rail during operation | °C | 0 ... 50 | |
| during transport | °C | -40 ... +70 | |
| during storage | °C | -40 ... +70 | |
| relative humidity at 25 °C during operation maximum | % | 95 | |
| installation altitude at height above sea level maximum | m | 2 000 | |
| Safety related data | |||
| suitability for use safety-related function | Yes | ||
| certificate of suitability TÃV (German technical inspectorate) certificate | Yes | ||
| certificate of suitability UL approval | Yes | ||
| Safety Integrity Level (SIL) according to IEC 61508 | SIL 3 | ||
| performance level (PL) according to EN ISO 13849-1 | e | ||
| SIL Claim Limit (subsystem) according to EN 62061 | 3 | ||
| category according to EN ISO 13849-1 | 4 | ||
| safety device type according to IEC 61508-2 | Type B | ||
| explosion protection marking for intrinsic safety of related equipment | |||
| EEx ia | No | ||
| EEx ib | No | ||
| explosion protection category for gas | none | ||
| explosion protection category for dust | none | ||
| vibration resistance according to IEC 60068-2-6 | 5 ... 8.4 Hz / 0.35 mm / 10 cycles; 8.4 ... 150 Hz / 9.8 m/s 2/10 cycles; 10 ... 60 Hz / 0.35 mm / 24 cycles; 60 ... 1000 Hz / 50 m/s 2/24 cycles | ||
| EMC immunity according to IEC 60947-1 | IEC61326-3-1 | ||
| conducted interference due to burst according to IEC 61000-4-4 | 2 kV | ||
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge | ||
| field-based interference according to IEC 61000-4-3 | 80 Mhz ... 1 GHz 20 V/m, 1.4 GHz ... 2 GHz 10 V/m, 2.0 GHz ... 2.7 GHz 3 V/m | ||
| EMC emitted interference according to IEC 60947-1 | IEC61000-6-4 Class A | ||
| reference code according to IEC 81346-2 | K | ||
| Certificates/ approvals | |||
