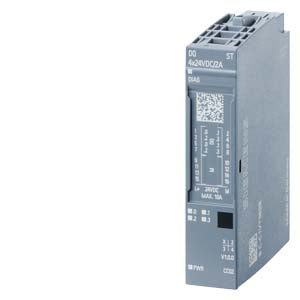

SIPLUS ET 200SP DQ 4x24VDC/2A ST

General information
Product type designation DQ 4x24 V DC/2 A ST
based on 6ES7132-6BD20-0BA0
usable BaseUnits BU type A0
Engineering with
STEP 7 TIA Portal configurable/integrated from version see entry ID: 109746275
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Power loss
Power loss, typ. 1 W
Address area
Address space per module
Address space per module, max. 32 byte
Digital outputs
Type of digital output Source output (PNP, current-sourcing)
Number of digital outputs 4; > +60 °C number of simultaneously controllable outputs max. 2x 0.25 A or max. 4x 0.125 A, max. total current 0.5 A
Short-circuit protection Yes
Response threshold, typ. 2.8 to 5.2 A
Limitation of inductive shutdown voltage to Typ. L+ (-50 V)
Controlling a digital input Yes
Switching capacity of the outputs
with resistive load, max. 2 A
on lamp load, max. 10 W
Load resistance range
lower limit 12 ¦
upper limit 3 400 ¦
Output current
for signal "1" rated value 2 A
Output delay with resistive load
"0" to "1", max. 50 µs
"1" to "0", max. 100 µs
Parallel switching of two outputs
for uprating No
for redundant control of a load Yes
Switching frequency
with resistive load, max. 100 Hz
with inductive load, max. 2 Hz
on lamp load, max. 10 Hz
Cable length
shielded, max. 1 000 m
unshielded, max. 200 m
Interrupts/diagnostics/status information
Diagnoses
Monitoring the supply voltage Yes
Wire-break Yes
Short-circuit Yes
Group error Yes
Permissible potential difference
between different circuits 75 V DC/60 V AC
Isolation
Isolation tested with 707 V DC
Standards, approvals, certificates
Suitable for safety functions No
Ecological footprint
environmental product declaration Yes
Global warming potential
global warming potential, (total) [CO2 eq] 29.3 kg
global warming potential, (during production) [CO2 eq] 3.98 kg
global warming potential, (during operation) [CO2 eq] 25.6 kg
global warming potential, (after end of life cycle) [CO2 eq] -0.245 kg
Ambient conditions
Ambient temperature during operation
horizontal installation, min. -40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max. 70 °C; = Tmax; > +60 °C number of simultaneously controllable outputs max. 2x 0.25 A or max. 4x 0.125 A, max. total current 0.5 A
vertical installation, min. -40 °C; = Tmin
vertical installation, max. 50 °C; = Tmax
Altitude during operation relating to sea level
Installation altitude above sea level, max. 5 000 m
Ambient air temperature-barometric pressure-altitude Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity
With condensation, tested in accordance with IEC 60068-2-38, max. 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation
Resistance
Coolants and lubricants
Resistant to commercially available coolants and lubricants Yes; Incl. diesel and oil droplets in the air
Use in stationary industrial systems
to biologically active substances according to EN 60721-3-3 Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
to chemically active substances according to EN 60721-3-3 Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
to mechanically active substances according to EN 60721-3-3 Yes; Class 3S4 incl. sand, dust, *
Against mechanical environmental conditions acc. to EN 60721-3-3 Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Use on ships/at sea
to biologically active substances according to EN 60721-3-6 Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
to chemically active substances according to EN 60721-3-6 Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
to mechanically active substances according to EN 60721-3-6 Yes; Class 6S3 incl. sand, dust; *
Against mechanical environmental conditions acc. to EN 60721-3-6 Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Usage in industrial process technology
Against chemically active substances acc. to EN 60654-4 Yes; Class 3 (excluding trichlorethylene)
Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Remark
Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 * The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating
Coatings for printed circuit board assemblies acc. to EN 61086 Yes; Class 2 for high reliability
Protection against fouling acc. to EN 60664-3 Yes; Type 1 protection
Military testing according to MIL-I-46058C, Amendment 7 Yes; Discoloration of coating possible during service life
Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A Yes; Conformal coating, Class A
Dimensions
Width 15 mm
Height 73 mm
Depth 58 mm
Weights
Weight, approx. 30 g
Approvals / Certificates
