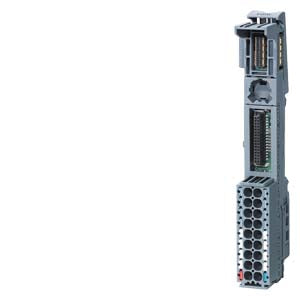

SIPLUS ET 200SP BU15-P16+A0+2B TX Rail
| General information | ||
| Product type designation | BU type A0 | |
| based on | 6ES7193-6BP00-0BA0 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic | |
| Mains filter | ||
| integrated | No | |
| Current carrying capacity | ||
| For P1 and P2 bus, max. | 10 A | |
| For process terminals, max. | 2 A | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Formation of potential groups | ||
| New potential group | No | |
| Potential group continued from the left | Yes | |
| Slots | ||
| Number of slots | 1; Type A0 | |
| Potential separation | ||
| between backplane bus and supply voltage | Yes | |
| Isolation | ||
| Isolation tested with | 750 V DC (type test) and according to EN 50155 (routine test) | |
| Standards, approvals, certificates | ||
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 0.873 kg | |
| global warming potential, (during production) [CO2 eq] | 0.866 kg | |
| global warming potential, (during operation) [CO2 eq] | 0 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg | |
| Railway application | ||
| EN 50121-3-2 | Yes; EMC for rail vehicles | |
| EN 50121-4 | Yes; EMC for signal and telecommunications systems | |
| EN 50121-5 | Yes; EMC for fixed installations and railway power supply equipment | |
| EN 50124-1 | Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC | |
| EN 50125-1 | Yes; Rail vehicles - see ambient conditions | |
| EN 50125-2 | Yes; Stationary electrical equipment - see ambient conditions | |
| EN 50125-3 | Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track) | |
| EN 50155 | Yes; Rail vehicles - temperature class OT4, ST1/ST2, horizontal mounting position | |
| EN 61373 | Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B | |
| Fire protection acc. to EN 45545-2 | Yes; For proof of conformity, see Service & Support | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -40 °C; = Tmin (incl. condensation/frost) | |
| horizontal installation, max. | 70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155) | |
| vertical installation, min. | -40 °C; = Tmin | |
| vertical installation, max. | 50 °C; = Tmax | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m | |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) | |
| Relative humidity | ||
| With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation | |
| Resistance | ||
| Coolants and lubricants | ||
| Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air | |
| Use in stationary industrial systems | ||
| to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request | |
| to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * | |
| to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * | |
| Against mechanical environmental conditions acc. to EN 60721-3-3 | Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0) | |
| Use on land craft, rail vehicles and special-purpose vehicles | ||
| to biologically active substances according to EN 60721-3-5 | Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request | |
| to chemically active substances according to EN 60721-3-5 | Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * | |
| to mechanically active substances according to EN 60721-3-5 | Yes; Class 5S3 incl. sand, dust; * | |
| Against mechanical environmental conditions acc. to EN 60721-3-5 | Yes; Class 5M2 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0) | |
| against mechanical environmental conditions in agriculture acc. to ISO 15003 | Yes; level 1 (Location LE) using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0) | |
| Usage in industrial process technology | ||
| Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) | |
| Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) | |
| Remark | ||
| Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! | |
| Conformal coating | ||
| Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability | |
| Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection | |
| Electronic equipment on rolling stock acc. to EN 50155 | Yes; Class PC2 protective coating acc. to EN 50155:2017 | |
| Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life | |
| Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A | |
| Accessories | ||
| Color coding labels | ||
| for process terminals | CC00 to CC09 | |
| for AUX terminals | does not exist | |
| for add-on terminals | does not exist | |
| connection method | ||
| Terminals | ||
| Terminal type | Push-in terminal | |
| system-integrated shield connection | Yes; Optional | |
| Conductor cross-section, min. | 0.14 mm²; AWG 26 | |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 | |
| Number of process terminals to I/O module | 16; Pro slot | |
| Number of terminals to AUX bus | 0 | |
| Number of add-on terminals | 0 | |
| Number of terminals with connection to P1 and P2 bus | 2; Pro slot | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 117 mm | |
| Depth | 35 mm | |
| Weights | ||
| Weight, approx. | 40 g | |
| Other | ||
| Note: | for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776 | |
| Approvals / Certificates | ||
