Siemens - 6AV2123-2GB03-0AX0
Siemens - 6AV2123-2GB03-0AX0
Regular price
€410,18 EUR
Regular price
Sale price
€410,18 EUR
Couldn't load pickup availability
89 in stock

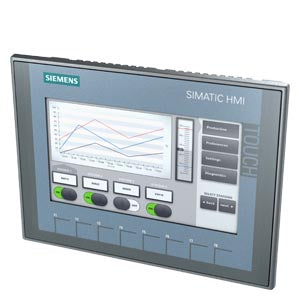

SIMATIC HMI KTP700 Basic
| General information | ||
| Product type designation | KTP700 Basic color PN | |
| Display | ||
| Design of display | TFT widescreen display, LED backlighting | |
| Screen diagonal | 7 in | |
| Display width | 154.1 mm | |
| Display height | 85.9 mm | |
| Number of colors | 65 536 | |
| Resolution (pixels) | ||
| Horizontal image resolution | 800 pixel | |
| Vertical image resolution | 480 pixel | |
| Backlighting | ||
| MTBF backlighting (at 25 °C) | 20 000 h | |
| Backlight dimmable | Yes | |
| Control elements | ||
| Keyboard fonts | ||
| Function keys | ||
| Number of function keys | 8 | |
| Number of function keys with LEDs | 0 | |
| Keys with LED | No | |
| System keys | No | |
| Numeric keyboard | Yes; Onscreen keyboard | |
| alphanumeric keyboard | Yes; Onscreen keyboard | |
| Touch operation | ||
| Design as touch screen | Yes; Analog-resistive | |
| Installation type/mounting | ||
| Mounting position | vertical | |
| Wall mounting/direct mounting | No | |
| Mounting in portrait format possible | Yes | |
| Mounting in landscape format possible | Yes | |
| maximum permissible angle of inclination without external ventilation | 35° | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 230 mA | |
| Starting current inrush I²t | 0.2 A²·s | |
| Power | ||
| Active power input, typ. | 5.5 W | |
| Processor | ||
| Processor type | ARM | |
| Memory | ||
| Flash | Yes | |
| RAM | Yes | |
| Memory available for user data | 10 Mbyte | |
| Type of output | ||
| Acoustics | ||
| Buzzer | Yes | |
| Speaker | No | |
| Time of day | ||
| Clock | ||
| Hardware clock (real-time) | Yes | |
| Software clock | Yes | |
| retentive | Yes; Back-up duration typically 6 weeks | |
| synchronizable | Yes | |
| Interfaces | ||
| Number of industrial Ethernet interfaces | 1 | |
| Number of RS 485 interfaces | 0 | |
| Number of RS 422 interfaces | 0 | |
| Number of RS 232 interfaces | 0 | |
| Number of USB interfaces | 1; Up to 16 GB | |
| Number of 20 mA interfaces (TTY) | 0 | |
| Number of parallel interfaces | 0 | |
| Number of other interfaces | 0 | |
| Number of SD card slots | 0 | |
| With software interfaces | No | |
| Industrial Ethernet | ||
| Industrial Ethernet status LED | 2 | |
| Protocols | ||
| PROFINET | Yes | |
| Supports protocol for PROFINET IO | No | |
| IRT | No | |
| PROFIBUS | No | |
| EtherNet/IP | Yes | |
| MPI | No | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| DHCP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| WEB characteristics | ||
| HTTP | No | |
| HTML | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | No | |
| Further protocols | ||
| CAN | No | |
| MODBUS | Yes; Modicon (MODBUS TCP/IP) | |
| Interrupts/diagnostics/status information | ||
| Diagnoses | ||
| Diagnostic information readable | No | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class A, for use in industrial areas | Yes | |
| Limit class B, for use in residential areas | No | |
| Degree and class of protection | ||
| IP (at the front) | IP65 | |
| IP (rear) | IP20 | |
| NEMA (front) | ||
| Enclosure Type 4 at the front | Yes | |
| Enclosure Type 4x at the front | Yes | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 85 kg | |
| global warming potential, (during production) [CO2 eq] | 26.2 kg | |
| global warming potential, (during operation) [CO2 eq] | 59.2 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.682 kg | |
| Use in hazardous areas | ||
| ATEX Zone 2 | No | |
| ATEX Zone 22 | No | |
| IECEx Zone 2 | No | |
| IECEx Zone 22 | No | |
| cULus Class I Zone 1 | No | |
| cULus Class I Zone 2, Division 2 | No | |
| FM Class I Division 2 | No | |
| Marine approval | ||
| Germanischer Lloyd (GL) | Yes | |
