Siemens - 6AV2124-1QC02-0AX0
Siemens - 6AV2124-1QC02-0AX0
Regular price
€4.790,51 EUR
Regular price
Sale price
€4.790,51 EUR
Couldn't load pickup availability
Low stock: 1 left

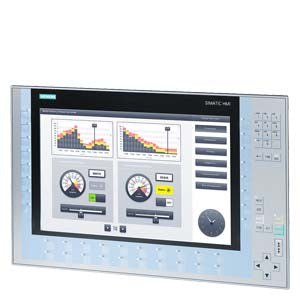

SIMATIC HMI KP1500 Comfort
| General information | ||
| Product type designation | KP1500 Comfort | |
| Display | ||
| Design of display | TFT | |
| Screen diagonal | 15.4 in | |
| Display width | 331.2 mm | |
| Display height | 207 mm | |
| Number of colors | 16 777 216 | |
| Resolution (pixels) | ||
| Horizontal image resolution | 1 280 pixel | |
| Vertical image resolution | 800 pixel | |
| Backlighting | ||
| MTBF backlighting (at 25 °C) | 80 000 h | |
| Backlight dimmable | Yes; 0-100 % | |
| Control elements | ||
| Keyboard fonts | ||
| Function keys | ||
| Number of function keys | 36 | |
| Number of function keys with LEDs | 36 | |
| Keys with LED | Yes | |
| System keys | Yes | |
| Numeric keyboard | Yes | |
| alphanumeric keyboard | Yes | |
| Touch operation | ||
| Design as touch screen | No; without | |
| Expansions for operator control of the process | ||
| DP direct LEDs (LEDs as S7 output I/O) | ||
| F1...Fx | 36 | |
| Direct keys (keys as S7 input I/O) | ||
| F1...Fx | 36 | |
| Installation type/mounting | ||
| Mounting position | vertical | |
| Wall mounting/direct mounting | No | |
| Mounting in portrait format possible | No | |
| Mounting in landscape format possible | Yes | |
| maximum permissible angle of inclination without external ventilation | 35° | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 1.5 A | |
| Starting current inrush I²t | 0.5 A²·s | |
| Power | ||
| Active power input, typ. | 36 W | |
| Processor | ||
| Processor type | X86 | |
| Memory | ||
| Flash | Yes | |
| RAM | Yes | |
| Memory available for user data | 24 Mbyte | |
| Type of output | ||
| Info LED | No | |
| Power LED | No | |
| Error LED | No | |
| Acoustics | ||
| Buzzer | No | |
| Speaker | Yes | |
| Time of day | ||
| Clock | ||
| Hardware clock (real-time) | Yes | |
| Software clock | Yes | |
| retentive | Yes; Back-up duration typically 6 weeks | |
| synchronizable | Yes | |
| Interfaces | ||
| Number of industrial Ethernet interfaces | 2; 2 ports (switch) + independent port | |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined | |
| Number of RS 422 interfaces | 1 | |
| Number of RS 232 interfaces | 0 | |
| Number of USB interfaces | 2; USB 2.0 | |
| USB Mini B | 1; 5-pole | |
| Number of 20 mA interfaces (TTY) | 0 | |
| Number of parallel interfaces | 0 | |
| Number of other interfaces | 0 | |
| Number of SD card slots | 2 | |
| With software interfaces | No | |
| Industrial Ethernet | ||
| Industrial Ethernet status LED | 3 | |
| Number of ports of the integrated switch | 2 | |
| Protocols | ||
| PROFINET | Yes | |
| Supports protocol for PROFINET IO | Yes | |
| IRT | Yes; As of WinCC V12 | |
| PROFIBUS | Yes | |
| EtherNet/IP | Yes | |
| MPI | Yes | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| DHCP | Yes | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| WEB characteristics | ||
| HTTP | Yes | |
| HTTPS | Yes | |
| HTML | Yes | |
| XML | Yes | |
| CSS | Yes | |
| Active X | Yes | |
| JavaScript | Yes | |
| Java VM | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Further protocols | ||
| CAN | No | |
| MODBUS | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnoses | ||
| Diagnostic information readable | Yes; S7 controller | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class A, for use in industrial areas | Yes | |
| Limit class B, for use in residential areas | No | |
| Degree and class of protection | ||
| IP (at the front) | IP65 | |
| IP (rear) | IP20 | |
| NEMA (front) | ||
| Enclosure Type 4 at the front | Yes | |
| Enclosure Type 4x at the front | Yes | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
