Siemens - 6AV2125-2AE23-0AX0
Siemens - 6AV2125-2AE23-0AX0
Regular price
€282,68 EUR
Regular price
Sale price
€282,68 EUR
Couldn't load pickup availability
Low stock: 3 left

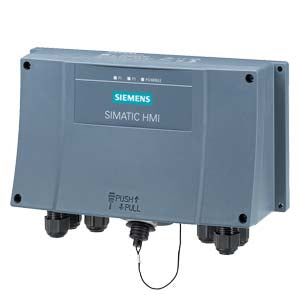

SIMATIC HMI Connection Box Advanced
| General information | ||
| Product type designation | Connection box | |
| Product function | ||
| Web-based management | Yes | |
| FH technology | ||
| Safety evaluation through direct wiring | ||
| Reconnection without emergency stop circuit interruption | Yes | |
| Reconnection with emergency stop circuit interruption | No | |
| Monitoring the STOP button | Yes | |
| Monitoring of emergency stop button | Yes | |
| Monitoring of acknowledgement button | Yes | |
| Safety evaluation via PROFIsafe | ||
| Reconnection without emergency stop circuit interruption | Yes | |
| Reconnection with emergency stop circuit interruption | No | |
| Monitoring the STOP button | Yes | |
| Monitoring of emergency stop button | Yes | |
| Monitoring of acknowledgement button | Yes | |
| Installation type/mounting | ||
| Wall mounting/direct mounting | Yes | |
| Control cabinet installation | No | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 95 mA | |
| Starting current inrush I²t | 0.16 A²·s | |
| Power | ||
| Active power input, typ. | 2.3 W | |
| Interfaces | ||
| Number of industrial Ethernet interfaces | 3 | |
| Number of PROFINET interfaces | 3 | |
| Connection point identification | Yes | |
| Industrial Ethernet | ||
| Industrial Ethernet status LED | 3 | |
| Protocols | ||
| PROFINET | Yes | |
| IRT | Yes | |
| PROFIsafe | Yes | |
| EtherNet/IP | Yes | |
| AS-Interface | No | |
| EIB/KNX | No | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| DHCP | Yes | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Further protocols | ||
| MODBUS | Yes | |
| other bus systems | No | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class A, for use in industrial areas | No | |
| Limit class B, for use in residential areas | No | |
| Degree and class of protection | ||
| IP degree of protection | IP65 | |
| IP65 (all-round) | Yes | |
| IP (at the front) | IP65 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | No; in preparation | |
| Suitable for safety functions | Yes | |
| Highest safety class achievable in safety mode | ||
| Performance level according to ISO 13849-1 | PLe | |
| SIL acc. to IEC 61508 | SIL 3 | |
| Use in hazardous areas | ||
| ATEX Zone 2 | No | |
| ATEX Zone 22 | No | |
| cULus Class I Zone 1 | No | |
| cULus Class I Zone 2, Division 2 | No | |
| FM Class I Division 2 | No | |
| Marine approval | ||
| Germanischer Lloyd (GL) | Yes | |
| American Bureau of Shipping (ABS) | Yes | |
| Bureau Veritas (BV) | Yes | |
| Det Norske Veritas (DNV) | Yes | |
| Korean Register of Shipping (KRS) | Yes | |
| Lloyds Register of Shipping (LRS) | Yes | |
| Nippon Kaiji Kyokai (Class NK) | Yes | |
| Polski Rejestr Statkow (PRS) | No | |
| Chinese Classification Society (CCS) | Yes | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 55 °C | |
| Relative humidity | ||
| Operation, max. | 90 % | |
| configuration / header | ||
| Configuration software | ||
| STEP 7 Professional (TIA Portal) | No | |
| WinCC Comfort (TIA Portal) | Yes; Optional | |
| WinCC Advanced (TIA Portal) | Yes; Optional | |
| WinCC Professional (TIA Portal) | Yes; Optional | |
| Mechanics/material | ||
| Enclosure material (front) | ||
| Plastic | Yes | |
| Aluminum | No | |
| Stainless steel | No | |
| Dimensions | ||
| Width | 230 mm | |
| Height | 151.3 mm | |
| Depth | 75.4 mm | |
| Weights | ||
| Weight (without packaging) | 0.72 kg | |
| Weight (with packaging) | 0.8 kg | |
| Approvals / Certificates | ||
