Siemens - 6AV2125-2GB03-0AX0
Siemens - 6AV2125-2GB03-0AX0
Regular price
€1.266,03 EUR
Regular price
Sale price
€1.266,03 EUR
Couldn't load pickup availability
Low stock: 1 left

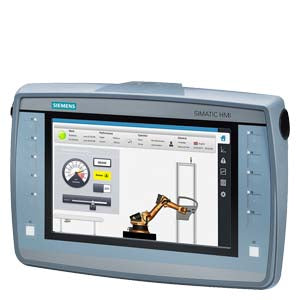

SIMATIC HMI KTP700 Mobile
| General information | ||
| Product type designation | KTP700 Mobile | |
| Display | ||
| Design of display | TFT widescreen display, LED backlighting | |
| Screen diagonal | 7 in | |
| Color display | Yes | |
| Number of colors | 16 777 216 | |
| Resolution (pixels) | ||
| Horizontal image resolution | 800 pixel | |
| Vertical image resolution | 480 pixel | |
| Backlighting | ||
| MTBF backlighting (at 25 °C) | 50 000 h | |
| Backlight dimmable | Yes; 0-100 % | |
| Control elements | ||
| Keyboard fonts | ||
| Function keys | ||
| Number of function keys | 8 | |
| Number of function keys with LEDs | 8 | |
| Keys with LED | Yes | |
| Numeric keyboard | Yes; Onscreen keyboard | |
| alphanumeric keyboard | Yes; Onscreen keyboard | |
| Touch operation | ||
| Design as touch screen | Yes | |
| Design as multi-touch screen | No | |
| Special operator controls | ||
| Stop button (forced blocking) | No | |
| Emergency stop button (illuminated and forced blocking) | No | |
| Acknowledgement button (3-stage) | No | |
| Key-operated switch | No | |
| Illuminated pushbutton | Yes | |
| Camera | ||
| integrated camera | No | |
| Expansions for operator control of the process | ||
| DP direct LEDs (LEDs as S7 output I/O) | ||
| F1...Fx | 8 | |
| Direct keys (keys as S7 input I/O) | ||
| F1...Fx | 8 | |
| Direct keys (touch buttons as S7 input I/O) | 32 | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 350 mA | |
| Starting current inrush I²t | 0.135 A²·s | |
| Power | ||
| Active power input, typ. | 8.5 W | |
| Processor | ||
| Processor type | ARM | |
| Memory | ||
| Flash | Yes | |
| RAM | Yes | |
| Memory available for user data | 12 Mbyte | |
| Type of output | ||
| Power LED | No | |
| LED for safe | No | |
| LED for communication | No | |
| LED for battery | No | |
| Vibrations | No | |
| Time of day | ||
| Clock | ||
| Hardware clock (real-time) | Yes | |
| retentive | Yes | |
| synchronizable | Yes | |
| Interfaces | ||
| Number of industrial Ethernet interfaces | 1 | |
| Number of PROFINET interfaces | 1 | |
| Number of RS 485 interfaces | 0 | |
| Number of RS 422 interfaces | 0 | |
| Number of RS 232 interfaces | 0 | |
| Number of USB interfaces | 1; USB 2.0 | |
| Number of wireless interfaces | 0 | |
| Number of SD card slots | 1 | |
| Protocols | ||
| PROFINET | Yes | |
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | No | |
| PROFIBUS | No | |
| EtherNet/IP | Yes | |
| MPI | No | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| DHCP | Yes | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| WEB characteristics | ||
| HTTP | Yes | |
| HTTPS | Yes | |
| HTML | Yes | |
| XML | No | |
| CSS | Yes | |
| Active X | No | |
| JavaScript | Yes | |
| Java VM | No | |
| Further protocols | ||
| MODBUS | Yes | |
| other bus systems | No | |
| communication functions / header | ||
| Wireless communication | ||
| supported standards | ||
| Radio standard WLAN 802.11 | No | |
| Bluetooth radio standard | No | |
| Interrupts/diagnostics/status information | ||
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class A, for use in industrial areas | Yes | |
| Limit class B, for use in residential areas | No | |
| Degree and class of protection | ||
| IP65 (all-round) | Yes | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
| Suitable for safety functions | No | |
| Marine approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 157 kg | |
| global warming potential, (during production) [CO2 eq] | 45 kg | |
| global warming potential, (during operation) [CO2 eq] | 114 kg | |
