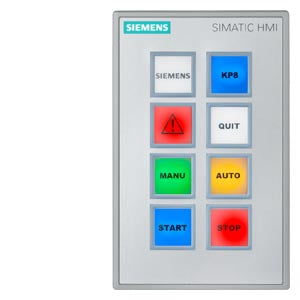

SIMATIC HMI Key Panel KP8F PN
| General information | ||
| Product type designation | KP8F PN | |
| Control elements | ||
| With parameterizable keys | Yes | |
| Keyboard fonts | ||
| Membrane keyboard | ||
| user-definable label membrane keys | Yes | |
| Function keys | ||
| Number of function keys | 8 | |
| Short-stroke keys | ||
| Number of short-stroke keys | 8 | |
| Expansions for operator control of the process | ||
| DP direct LEDs (LEDs as S7 output I/O) | 8; Adjustable brightness | |
| Number of color modes for LED | 5; red, green, blue, yellow, white | |
| Direct keys (keys as S7 input I/O) | 8 | |
| Installation type/mounting | ||
| Mounting type | Mounting clip | |
| Mounting position | vertical | |
| Rack mounting | No | |
| Front mounting | Yes; Compatible with Extension Units dimensions | |
| Rail mounting | No | |
| Wall mounting/direct mounting | No | |
| Mounting in portrait format possible | Yes | |
| Mounting in landscape format possible | Yes | |
| maximum permissible angle of inclination without external ventilation | 30°; To the front/rear | |
| Number of slots for command devices and signaling units | 0 | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Rated value (DC) | 24 V; 24 V can be looped through connector, interrupted when pulled | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 0.3 A | |
| Digital inputs | ||
| Number of digital inputs | 8; total inputs and outputs max. 8 and 2x SIL 2 or 1x SIL 3 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| Digital outputs | ||
| Number of digital outputs | 8; Max. 8 inputs and outputs (total) | |
| Short-circuit protection | Yes | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 100 mA | |
| Output voltage | ||
| Rated value (DC) | 24 V; Non-isolated | |
| Total current of the outputs | ||
| Current per channel, max. | 100 mA | |
| Current per group, max. | 800 mA | |
| Interfaces | ||
| Number of industrial Ethernet interfaces | 2; For the construction of lines and rings without external switch | |
| Number of PROFINET interfaces | 2; Incl. switch | |
| Industrial Ethernet | ||
| Industrial Ethernet status LED | 2; Per port | |
| Number of ports of the integrated switch | 2; Per port | |
| Protocols | ||
| PROFINET | Yes; also 3rd party PLC | |
| Supports protocol for PROFINET IO | Yes | |
| PROFINET CBA | No | |
| IRT | Yes | |
| PROFIsafe | Yes; 1x SIL 3 (two-channel) or 2x SIL 2 (single-channel) emergency stop sensors | |
| PROFIBUS | No | |
| EtherNet/IP | No | |
| MPI | No | |
| AS-Interface | No | |
| EIB/KNX | No | |
| Protocols (Ethernet) | ||
| TCP/IP | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Further protocols | ||
| AS-Interface Safety at Work | No | |
| CAN | No | |
| Data-Highway | No | |
| DeviceNet | No | |
| DeviceNet Safety | No | |
| Foundation Fieldbus | No | |
| INTERBUS | No | |
| INTERBUS-Safety | No | |
| Local Operating Network | No | |
| MODBUS | No | |
| SafetyBUS p | No | |
| SERCOS | No | |
| SUCOnet | No | |
| other bus systems | No | |
| Test commissioning functions | ||
| Illuminant test | Yes; During switch on | |
| Key and signal lamp test | Yes; automatically when switching on | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class A, for use in industrial areas | Yes; Group 1, measured at a distance of 10 m | |
| Limit class B, for use in residential areas | No | |
| Degree and class of protection | ||
| IP (at the front) | IP65 | |
| IP (rear) | IP20 | |
| NEMA (front) | ||
| Enclosure Type 4 at the front | No | |
| Enclosure Type 4x at the front | Yes; Incl. NEMA12 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
| EAC (formerly Gost-R) | Yes | |
| CCC | No; not necessary | |
| Suitable for safety functions | Yes | |
| Use in hazardous areas | ||
| ATEX Zone 2 | Yes | |
| ATEX Zone 22 | Yes | |
| cULus Class I Zone 1 | No | |
| cULus Class I Zone 2, Division 2 | Yes | |
| FM Class I Division 2 | Yes | |
| Marine approval | ||
| Germanischer Lloyd (GL) | No | |
| American Bureau of Shipping (ABS) | No | |
| Bureau Veritas (BV) | No | |
| Det Norske Veritas (DNV) | No | |
| Lloyds Register of Shipping (LRS) | No | |
| Nippon Kaiji Kyokai (Class NK) | No | |
| Polski Rejestr Statkow (PRS) | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 55 °C | |
