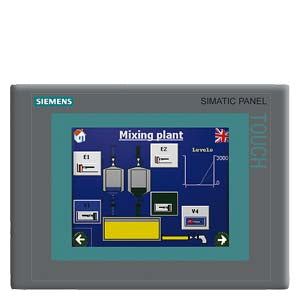

SIMATIC Touch Panel TP277 6" TFT
| General information | ||
| Product type designation | TP277 | |
| Customer-specific configuration | Yes | |
| Display | ||
| Design of display | TFT | |
| Screen diagonal | 5.7 in | |
| Color display | Yes | |
| Number of colors | 256 | |
| Resolution (pixels) | ||
| Horizontal image resolution | 320 pixel | |
| Vertical image resolution | 240 pixel | |
| Backlighting | ||
| MTBF backlighting (at 25 °C) | 60 000 h | |
| Control elements | ||
| Control elements | Touch screen | |
| Keyboard fonts | ||
| Function keys | ||
| Number of function keys | 0 | |
| Number of function keys with LEDs | 0 | |
| System keys | No | |
| Number of system keys | 0 | |
| Numeric keyboard | Yes | |
| alphanumeric keyboard | Yes | |
| hexadecimal keyboard | Yes | |
| Touch operation | ||
| Design as touch screen | Yes; analog, resistive | |
| Connection type | ||
| Type of connection for mouse/keyboard/barcode reader | USB / USB / USB | |
| Installation type/mounting | ||
| Mounting position | vertical | |
| Supply voltage | ||
| Type of supply voltage | DC | |
| Processor | ||
| Processor type | RISC 32 bit | |
| Memory | ||
| Type of memory | Flash / RAM | |
| Memory available for user data | 4 Mbyte | |
| Capacity of main memory, max. | 64 Mbyte | |
| Time of day | ||
| Clock | ||
| Type | Software clock, synchronizable, no battery backup | |
| retentive | No | |
| synchronizable | Yes | |
| Interfaces | ||
| Interfaces/bus type | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) | |
| Number of industrial Ethernet interfaces | 1 | |
| Number of RS 485 interfaces | 1 | |
| Number of RS 422 interfaces | 1 | |
| Number of USB interfaces | 1; Up to 1 GB | |
| Multimedia card/SD card slot | 1x Multimedia Card slot, up to 128 MB | |
| With software interfaces | No | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | No | |
| PROFIBUS | Yes | |
| EtherNet/IP | No | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| Further protocols | ||
| MODBUS | Yes | |
| Degree and class of protection | ||
| IP (at the front) | IP65 | |
| IP (rear) | IP20 | |
| NEMA (front) | NEMA 4x (when installed) | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| UL approval | Yes | |
| Suitable for safety functions | No | |
| Use in hazardous areas | ||
| ATEX Zone 2 | No; certificate no longer available as of 1 October 2020 | |
| ATEX Zone 22 | No; certificate no longer available as of 1 October 2020 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 50 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -20 °C | |
| max. | 60 °C | |
| Relative humidity | ||
| Operation, max. | 80 % | |
| Operating systems | ||
| pre-installed operating system | Windows CE | |
| configuration / header | ||
| Message indicator | Yes | |
| Alarm system (incl. buffer and acknowledgment) | Yes | |
| Process value display (output) | Yes | |
| Process value default (input) possible | Yes | |
| Recipe management | Yes | |
| Configuration software | ||
| Configuration tool | WinCC flexible Standard Version 2005 SP1 or higher (to be ordered separately) | |
| STEP 7 Basic (TIA Portal) | No | |
| STEP 7 Professional (TIA Portal) | No | |
| WinCC flexible Compact | No | |
| WinCC flexible Standard | Yes | |
| WinCC flexible Advanced | Yes | |
| WinCC Basic (TIA Portal) | No | |
| WinCC Comfort (TIA Portal) | Yes | |
| WinCC Advanced (TIA Portal) | Yes | |
| WinCC Professional (TIA Portal) | Yes | |
| Languages | ||
| Online languages | ||
| Number of online/runtime languages | 16 | |
| Project languages | ||
| Languages per project | 32 | |
| Functionality under WinCC (TIA Portal) | ||
| Libraries | Yes | |
| Task planner | Yes | |
| Help system | Yes | |
| Number of characters per info text | 80 | |
| Message system | ||
| Number of alarm classes | 32 | |
| Number of messages | 4 000 | |
| Bit messages | Yes | |
| Number of bit messages | 4 000 | |
| Analog messages | Yes | |
| Number of analog messages | 4 000 | |
| System messages HMI | Yes | |
| System messages PLC | Yes | |
| System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes | |
| Lines | 1 | |
| Number of characters per message | 80 | |
| Number of process values per message | 8 | |
| Acknowledgment groups | ||
| Number of acknowledgement groups | Yes | |
| Message indicator | Yes | |
