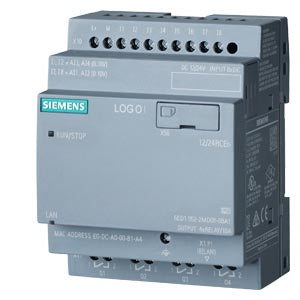

Siemens - 6ED1052-2MD08-0BA2
Siemens - 6ED1052-2MD08-0BA2
Regular price
€76,99 EUR
Regular price
Sale price
€76,99 EUR
Couldn't load pickup availability
Low stock: 3 left
LOGO! 12/24RCEO
| Installation type/mounting | ||
| Mounting | on 35 mm DIN rail, 4 spacing units wide | |
| Supply voltage | ||
| Rated value (DC) | ||
| 12 V DC | Yes | |
| 24 V DC | Yes | |
| permissible range, lower limit (DC) | 10.8 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Time of day | ||
| Time switching clocks | ||
| Number | 400; Max. 400, function-specific | |
| Power reserve | 480 h | |
| Digital inputs | ||
| Number of digital inputs | 8; Of which 4 can be used in analog mode (0 to 10 V) | |
| Digital outputs | ||
| Number of digital outputs | 4; Relays | |
| Short-circuit protection | No; external fusing necessary | |
| Output current | ||
| for signal "1" permissible range for 0 to 55 °C, max. | 10 A | |
| Relay outputs | ||
| Switching capacity of contacts | ||
| with inductive load, max. | 3 A | |
| with resistive load, max. | 10 A | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class B, for use in residential areas | Yes; Radio interference suppression according to EN55011, Limit Value Class B | |
| Standards, approvals, certificates | ||
| Siemens Eco Profile (SEP) | Siemens EcoTech | |
| CE mark | Yes | |
| CSA approval | No; covered by UL cert | |
| UL approval | Yes | |
| FM approval | Yes | |
| developed in accordance with IEC 61131 | Yes | |
| according to VDE 0631 | Yes | |
| Marine approval | Yes; in preparation | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 51.5 kg | |
| global warming potential, (during production) [CO2 eq] | 9.64 kg | |
| global warming potential, (during operation) [CO2 eq] | 42.1 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.364 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -20 °C; No condensation | |
| max. | 55 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Altitude during operation relating to sea level | ||
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) | |
| Dimensions | ||
| Width | 71.5 mm | |
| Height | 90 mm | |
| Depth | 58 mm | |
| Approvals / Certificates | ||
