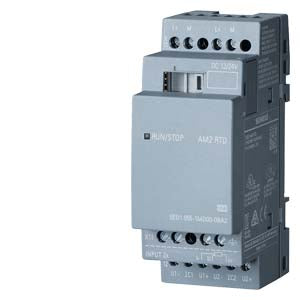

Siemens - 6ED1055-1MD00-0BA2
Siemens - 6ED1055-1MD00-0BA2
Regular price
€61,97 EUR
Regular price
Sale price
€61,97 EUR
Couldn't load pickup availability
17 in stock
LOGO! AM2 RTD 2 AI
| Installation type/mounting | ||
| Mounting | on 35 mm DIN rail, 2 spacing units wide | |
| Supply voltage | ||
| Rated value (DC) | ||
| 12 V DC | Yes; 10.8 V DC to 28.8 V DC | |
| 24 V DC | Yes; 10.8 V DC to 28.8 V DC | |
| Input current | ||
| Current consumption, typ. | 30 mA | |
| Analog inputs | ||
| Number of analog inputs | 2; 2 or 3 wire connection | |
| Input ranges | ||
| Voltage | No | |
| Current | No | |
| Resistance thermometer | Yes; For PT100/PT1000 sensors | |
| Input ranges (rated values), voltages | ||
| 0 to +10 V | No | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | No | |
| Input ranges (rated values), resistance thermometer | ||
| Pt 100 | Yes | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class B, for use in residential areas | Yes | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| CSA approval | Yes | |
| UL approval | Yes | |
| FM approval | Yes | |
| developed in accordance with IEC 61131 | Yes | |
| Marine approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 16.5 kg | |
| global warming potential, (during production) [CO2 eq] | 3.22 kg | |
| global warming potential, (during operation) [CO2 eq] | 13.4 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.124 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -20 °C; No condensation | |
| max. | 55 °C | |
| Dimensions | ||
| Width | 35.5 mm | |
| Height | 90 mm | |
| Depth | 58 mm | |
| Approvals / Certificates | ||
