Siemens - 6ED1055-1MM00-0BA2
Siemens - 6ED1055-1MM00-0BA2
Regular price
€73,30 EUR
Regular price
Sale price
€73,30 EUR
Couldn't load pickup availability
Low stock: 7 left

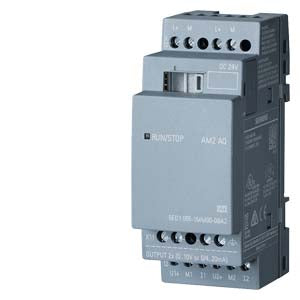

LOGO! AM2 AQ 2 AO
| Installation type/mounting | ||
| Mounting | on 35 mm DIN rail, 2 spacing units wide | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Analog outputs | ||
| Number of analog outputs | 2 | |
| Output ranges, voltage | ||
| 0 to 10 V | Yes | |
| Output ranges, current | ||
| 0 to 20 mA | Yes | |
| 4 mA to 20 mA | Yes | |
| EMC | ||
| Emission of radio interference acc. to EN 55 011 | ||
| Limit class B, for use in residential areas | Yes | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| CSA approval | Yes | |
| UL approval | Yes | |
| FM approval | Yes | |
| developed in accordance with IEC 61131 | Yes | |
| according to VDE 0631 | Yes | |
| Marine approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 16.5 kg | |
| global warming potential, (during production) [CO2 eq] | 3.22 kg | |
| global warming potential, (during operation) [CO2 eq] | 13.4 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.124 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -20 °C; No condensation | |
| max. | 55 °C | |
| Dimensions | ||
| Width | 35.5 mm | |
| Height | 90 mm | |
| Depth | 58 mm | |
| Approvals / Certificates | ||
