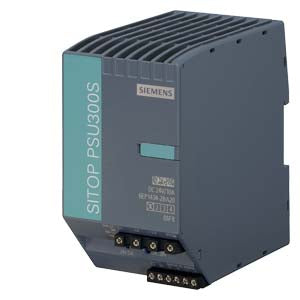

SITOP PSU300S DC 24V/10A
| input | ||
| type of the power supply network | 3-phase AC | |
| supply voltage at AC | ||
| minimum rated value | 400 V | |
| maximum rated value | 500 V | |
| initial value | 340 V | |
| full-scale value | 550 V | |
| wide range input | Yes | |
| buffering time for rated value of the output current in the event of power failure minimum | 7 ms | |
| operating condition of the mains buffering | at Vin = 400 V | |
| line frequency | 50/60 Hz | |
| line frequency | 47 ... 63 Hz | |
| input current | ||
| at rated input voltage 400 V | 0.7 A | |
| at rated input voltage 500 V | 0.6 A | |
| current limitation of inrush current at 25 °C maximum | 20 A | |
| I2t value maximum | 0.5 A²·s | |
| fuse protection type | none | |
| fuse protection type in the feeder | Required: 3-pole connected miniature circuit breaker 3 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489-listed, DIVQ) | |
| output | ||
| voltage curve at output | Controlled, isolated DC voltage | |
| output voltage at DC rated value | 24 V | |
| output voltage | ||
| at output 1 at DC rated value | 24 V | |
| output voltage adjustable | Yes; via potentiometer | |
| adjustable output voltage | 24 ... 28 V; max. 240 W | |
| relative overall tolerance of the voltage | 3 % | |
| relative control precision of the output voltage | ||
| on slow fluctuation of input voltage | 0.1 % | |
| on slow fluctuation of ohm loading | 0.15 % | |
| residual ripple | ||
| maximum | 200 mV | |
| voltage peak | ||
| maximum | 240 mV | |
| display version for normal operation | Green LED for 24 V OK | |
| type of signal at output | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" | |
| behavior of the output voltage when switching on | Overshoot of Vout < 5 % | |
| response delay maximum | 1.5 s | |
| voltage increase time of the output voltage | ||
| typical | 50 ms | |
| maximum | 500 ms | |
| output current | ||
| rated value | 10 A | |
| rated range | 0 ... 10 A; 12 A up to +45°C; +60 ... +70 °C: Derating 5%/K | |
| supplied active power typical | 240 W | |
| bridging of equipment | Yes | |
| number of parallel-switched equipment resources for increasing the power | 2 | |
| efficiency | ||
| efficiency in percent | 91 % | |
| power loss [W] | ||
| at rated output voltage for rated value of the output current typical | 23 W | |
| closed-loop control | ||
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 1 % | |
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 1 % | |
| setting time | ||
| load step 50 to 100% typical | 3 ms | |
| load step 100 to 50% typical | 3 ms | |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % | |
| setting time | ||
| load step 10 to 90% typical | 4 ms | |
| load step 90 to 10% typical | 4 ms | |
| maximum | 10 ms | |
| protection and monitoring | ||
| design of the overvoltage protection | protection against overvoltage in case of internal fault Vout < 35 V | |
| property of the output short-circuit proof | Yes | |
| design of short-circuit protection | Constant current characteristic | |
| typical | 13 A | |
| overcurrent overload capability | ||
| in normal operation | overload capability 150 % Iout rated up to 5 s/min | |
| enduring short circuit current RMS value | ||
| maximum | 16 A | |
| safety | ||
| galvanic isolation between input and output | Yes | |
| galvanic isolation | Safety extra-low output voltage Vout acc. to EN 60950-1 and EN 50178, transformer acc. to EN 61558-2-16 | |
| operating resource protection class | Class I | |
| protection class IP | IP20 | |
| EMC | ||
| standard | ||
| for emitted interference | EN 55022 Class B | |
| for mains harmonics limitation | EN 61000-3-2 | |
| for interference immunity | EN 61000-6-2 | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| CE marking | Yes | |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) | |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (UL 62368-1, CSA C22.2 No. 62368-1-19) | |
| UKCA marking | Yes | |
| EAC approval | Yes | |
| NEC Class 2 | No | |
| type of certification | ||
| BIS | Yes; R-41183539 | |
| CB-certificate | Yes | |
| MTBF at 40 °C | 500 000 h | |
| standards, specifications, approvals hazardous environments | ||
| certificate of suitability | ||
| IECEx | No | |
| ATEX | No | |
| ULhazloc approval | No | |
| cCSAus, Class 1, Division 2 | No | |
| FM registration | No | |
| standards, specifications, approvals marine classification | ||
| shipbuilding approval | Yes | |
| Marine classification association | ||
| American Bureau of Shipping Europe Ltd. (ABS) | Yes | |
| French marine classification society (BV) | No | |
| Det Norske Veritas (DNV) | Yes | |
| Lloyds Register of Shipping (LRS) | No | |
| standards, specifications, approvals Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 642.3 kg | |
| during manufacturing | 18 kg | |
| during operation | 623.6 kg | |
| after end of life | 0.52 | |
