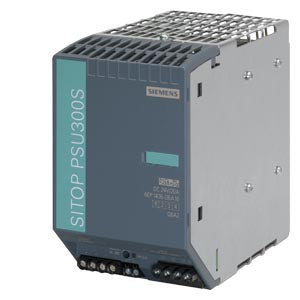

SITOP PSU300S DC 24V/20A

input
type of the power supply network 3-phase AC
supply voltage at AC
minimum rated value 400 V
maximum rated value 500 V
initial value 340 V
full-scale value 550 V
wide range input Yes
buffering time for rated value of the output current in the event of power failure minimum 6 ms
operating condition of the mains buffering at Vin = 400 V
line frequency 50/60 Hz
line frequency 47 ... 63 Hz
input current
at rated input voltage 400 V 1.2 A
at rated input voltage 500 V 1 A
current limitation of inrush current at 25 °C maximum 36 A
I2t value maximum 0.9 A²·s
fuse protection type none
fuse protection type in the feeder Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489-listed, DIVQ)
output
voltage curve at output Controlled, isolated DC voltage
output voltage at DC rated value 24 V
output voltage
at output 1 at DC rated value 24 V
output voltage adjustable Yes; via potentiometer
adjustable output voltage 24 ... 28 V; max. 480 W
relative overall tolerance of the voltage 3 %
relative control precision of the output voltage
on slow fluctuation of input voltage 0.5 %
on slow fluctuation of ohm loading 1 %
residual ripple
maximum 150 mV
voltage peak
maximum 240 mV
display version for normal operation Green LED for 24 V OK
type of signal at output Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
behavior of the output voltage when switching on No overshoot of Vout (soft start)
response delay maximum 1.5 s
voltage increase time of the output voltage
typical 30 ms
maximum 500 ms
output current
rated value 20 A
rated range 0 ... 20 A
supplied active power typical 480 W
short-term overload current
on short-circuiting during the start-up typical 35 A
at short-circuit during operation typical 35 A
duration of overloading capability for excess current
on short-circuiting during the start-up 100 ms
at short-circuit during operation 100 ms
bridging of equipment Yes
number of parallel-switched equipment resources for increasing the power 2
efficiency
efficiency in percent 91 %
power loss [W]
at rated output voltage for rated value of the output current typical 47 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical 3 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical 3 %
setting time
load step 50 to 100% typical 2 ms
load step 100 to 50% typical 2 ms
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical 3 %
setting time
load step 10 to 90% typical 2 ms
load step 90 to 10% typical 2 ms
maximum 10 ms
protection and monitoring
design of the overvoltage protection protection against overvoltage in case of internal fault Vout < 35 V
property of the output short-circuit proof Yes
design of short-circuit protection Electronic shutdown, automatic restart
typical 25.5 A
overcurrent overload capability
in normal operation overload capability 150 % Iout rated up to 5 s/min
enduring short circuit current RMS value
maximum 7 A
safety
galvanic isolation between input and output Yes
galvanic isolation Safety extra-low output voltage Vout acc. to EN 60950-1 and EN 50178, transformer acc. to EN 61558-2-16
operating resource protection class Class I
leakage current
maximum 3.5 mA
typical 1 mA
protection class IP IP20
EMC
standard
for emitted interference EN 55022 Class B
for mains harmonics limitation EN 61000-3-2
for interference immunity EN 61000-6-2
standards, specifications, approvals
certificate of suitability
CE marking Yes
UL approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
UKCA marking Yes
EAC approval Yes
NEC Class 2 No
SEMI F47 Yes
type of certification
BIS Yes; R-41183539
CB-certificate Yes
MTBF at 40 °C 500 000 h
standards, specifications, approvals hazardous environments
certificate of suitability
IECEx No
ATEX No
ULhazloc approval No
cCSAus, Class 1, Division 2 No
FM registration No
standards, specifications, approvals marine classification
shipbuilding approval Yes
Marine classification association
American Bureau of Shipping Europe Ltd. (ABS)
