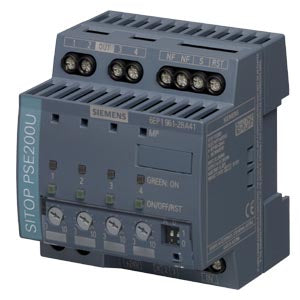

SITOP PSE200U DC 24V/10A

input
type of the power supply network Controlled DC voltage
supply voltage at DC rated value 24 V
input voltage at DC 22 ... 30 V
overvoltage overload capability 35 V
input current at rated input voltage 24 V rated value 40 A
output
voltage curve at output controlled DC voltage
formula for output voltage Vin - approx. 0.2 V
relative overall tolerance of the voltage note In accordance with the supplying input voltage
number of outputs 4
output current up to 60 °C per output rated value 10 A
adjustable current response value current of the current-dependent overload release 3 ... 10 A
type of response value setting via potentiometer
response delay maximum 5 s
product feature parallel switching of outputs No
type of outputs connection Simultaneous connection of all outputs after power up of the supply voltage > 20 V, delay time of 25 ms, 100 ms or adjustable "load optimised" via DIP switch for sequential connection
efficiency
efficiency in percent 99 %
power loss [W] at rated output voltage for rated value of the output current typical 10 W
switch-off characteristic
switching characteristic
of the excess current Iout = 1.0 ...1.5 x set value, switch-off after approx. 5 s
of the current limitation Iout = 1.5 x set value, switch-off after typ. 100 ms
of the immediate switch-off Iout > set value and Vin < 20 V, switch-off after approx. 0.5 ms
residual current at switch-off typical 1 mA
design of the reset device/resetting mechanism via sensor per output
remote reset function Non-electrically isolated 24 V input (signal level "high" at > 15 V)
protection and monitoring
fuse protection type at input 15 A per output (not accessible)
display version for normal operation Three-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling function Status signal output (pulse/pause signal, can be evaluated via Simatic function block)
safety
galvanic isolation between input and output at switch-off No
standard for safety according to EN 62368-1
operating resource protection class Class III
protection class IP IP20
standard
for emitted interference EN 55022 Class B
for interference immunity EN 61000-6-2
standards, specifications, approvals
certificate of suitability
CE marking Yes
UL approval Yes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259
CSA approval Yes; cCSAus (CSA C22.2 62368-1, UL 62368-1)
EAC approval Yes
type of certification
CB-certificate Yes
MTBF at 40 °C 540 979 h
standards, specifications, approvals hazardous environments
certificate of suitability
IECEx No
ATEX No
standards, specifications, approvals marine classification
shipbuilding approval Yes
Marine classification association
American Bureau of Shipping Europe Ltd. (ABS) Yes
Det Norske Veritas (DNV) Yes
standards, specifications, approvals Environmental Product Declaration
Environmental Product Declaration Yes
global warming potential [CO2 eq]
total 322 kg
during manufacturing 18.6 kg
during operation 469.4 kg
after end of life 0.3 kg
Siemens Eco Profile (SEP) Siemens EcoTech
ambient conditions
ambient temperature
during operation -25 ... +60; with natural convection
during transport -40 ... +85
during storage -40 ... +85
environmental category according to IEC 60721 Climate class 3K3, 5 ¦ 95% no condensation
connection method
type of electrical connection screw terminal
at input +24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm²
at output Output 1 ... 4: 1 screw terminal each for 0.5 ... 4 mm²
for auxiliary contacts Remote reset: 1 screw terminal for 0.5 ... 4 mm²
for signaling contact 1 screw terminal for 0.5 ... 4 mm²
mechanical data
width à height à depth of the enclosure 72 Ã 80 Ã 72 mm
installation width à mounting height 72 mm Ã 180 mm
required spacing
top 50 mm
bottom 50 mm
left 0 mm
right 0 mm
fastening method Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting Yes
S7 rail mounting No
wall mounting No
housing can be lined up Yes
net weight 0.2 kg
accessories
mechanical accessories Device identification label 20 mm à 7 mm, TI-grey 3RT2900-1SB20
further information internet links
internet link
to website: Industry Mall https://mall.industry.siemens.com
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to web page: power supplies https://siemens.com/sitop
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
additional information
other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
security information
