Siemens - 6EP3333-6SB00-0AY0
Siemens - 6EP3333-6SB00-0AY0
Regular price
€65,27 EUR
Regular price
Sale price
€65,27 EUR
Couldn't load pickup availability
Low stock: 6 left

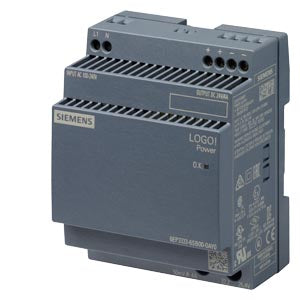

LOGO!Power DC 24V/4A
| input | ||
| type of the power supply network | 1-phase AC or DC | |
| supply voltage at AC | ||
| minimum rated value | 100 V | |
| maximum rated value | 240 V | |
| initial value | 85 V | |
| full-scale value | 264 V | |
| input voltage at DC | 110 ... 300 V | |
| wide range input | Yes | |
| overvoltage overload capability | 300 V AC for 1 s | |
| buffering time for rated value of the output current in the event of power failure minimum | 40 ms | |
| operating condition of the mains buffering | at Vin = 187 V | |
| line frequency | 50/60 Hz | |
| line frequency | 47 ... 63 Hz | |
| input current | ||
| at rated input voltage 120 V | 1.95 A | |
| at rated input voltage 230 V | 0.97 A | |
| current limitation of inrush current at 25 °C maximum | 31 A | |
| I2t value maximum | 2.5 A²·s | |
| fuse protection type | internal | |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 10 A characteristic B or from 6 A characteristic C | |
| output | ||
| voltage curve at output | Controlled, isolated DC voltage | |
| output voltage at DC rated value | 24 V | |
| output voltage | ||
| at output 1 at DC rated value | 24 V | |
| output voltage adjustable | Yes; via potentiometer | |
| adjustable output voltage | 22.2 ... 26.4 V | |
| relative overall tolerance of the voltage | 3 % | |
| relative control precision of the output voltage | ||
| on slow fluctuation of input voltage | 0.1 % | |
| on slow fluctuation of ohm loading | 0.1 % | |
| residual ripple | ||
| maximum | 200 mV | |
| typical | 30 mV | |
| voltage peak | ||
| maximum | 300 mV | |
| typical | 50 mV | |
| display version for normal operation | Green LED for output voltage OK | |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) | |
| response delay maximum | 0.5 s | |
| voltage increase time of the output voltage | ||
| typical | 100 ms | |
| output current | ||
| rated value | 4 A | |
| rated range | 0 ... 4 A; +55 ... +70 °C: Derating 2%/K | |
| supplied active power typical | 96 W | |
| bridging of equipment | Yes | |
| number of parallel-switched equipment resources for increasing the power | 2 | |
| efficiency | ||
| efficiency in percent | 89.1 % | |
| power loss [W] | ||
| at rated output voltage for rated value of the output current typical | 11.7 W | |
| during no-load operation maximum | 0.3 W | |
| closed-loop control | ||
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.2 % | |
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 2 % | |
| setting time | ||
| load step 10 to 90% typical | 1 ms | |
| load step 90 to 10% typical | 1 ms | |
| protection and monitoring | ||
| design of the overvoltage protection | Yes, according to EN 60950-1 | |
| property of the output short-circuit proof | Yes | |
| design of short-circuit protection | Constant current characteristic | |
| typical | 5 A | |
| overcurrent overload capability | ||
| when switching on | 150% Iout rated typ. 200 ms | |
| in normal operation | overload capability 150% Iout rated typ. 200 ms | |
| enduring short circuit current RMS value | ||
| maximum | 5 A | |
| measuring point for output current | Yes; 50 mV =^ 4 A | |
| safety | ||
| galvanic isolation between input and output | Yes | |
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 | |
| operating resource protection class | Class II (without protective conductor) | |
| protection class IP | IP20 | |
| EMC | ||
| standard | ||
| for emitted interference | EN 55022 Class B | |
| for mains harmonics limitation | EN 61000-3-2 | |
| for interference immunity | EN 61000-6-2 | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| CE marking | Yes | |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273 | |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273 | |
| EAC approval | Yes | |
| NEC Class 2 | No | |
| SEMI F47 | Yes | |
| type of certification | ||
| BIS | Yes; R-41188271 | |
| CB-certificate | Yes | |
| MTBF at 40 °C | 2 391 480 h | |
| standards, specifications, approvals hazardous environments | ||
| certificate of suitability | ||
| IECEx | No | |
| ATEX | No | |
| ULhazloc approval | No | |
| cCSAus, Class 1, Division 2 | No | |
| FM registration | No | |
| standards, specifications, approvals marine classification | ||
| shipbuilding approval | Yes | |
| Marine classification association | ||
| American Bureau of Shipping Europe Ltd. (ABS) | Yes | |
| French marine classification society (BV) | Yes | |
| Det Norske Veritas (DNV) | Yes | |
| Lloyds Register of Shipping (LRS) | Yes | |
| standards, specifications, approvals Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 326 kg | |
| during manufacturing | 5.5 kg | |
| during operation | 320 kg | |
| after end of life | 0.2 kg | |
