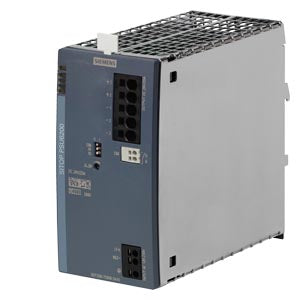

SITOP PSU6200 Ex DC 24V/20A
| input | ||
| type of the power supply network | 1-phase AC or DC | |
| supply voltage at AC | ||
| minimum rated value | 120 V | |
| maximum rated value | 240 V | |
| initial value | 85 V | |
| full-scale value | 264 V | |
| supply voltage at DC | 110 ... 240 V | |
| input voltage at DC | 85 ... 275 V | |
| wide range input | Yes | |
| overvoltage overload capability | 300 V AC for 30 s | |
| buffering time for rated value of the output current in the event of power failure minimum | 25 ms | |
| operating condition of the mains buffering | at Vin = 240 V | |
| line frequency | 50/60 Hz | |
| line frequency | 47 ... 63 Hz | |
| input current | ||
| at rated input voltage 120 V | 4.4 A | |
| at rated input voltage 240 V | 2.2 A | |
| current limitation of inrush current at 25 °C maximum | 12 A | |
| fuse protection type | 10 A | |
| fuse protection type in the feeder | Circuit breaker from 6 A characteristic B to 16 A characteristic C or circuit breaker 3RV2011-1HA10 (setting 8A) or 3RV2711-1HD10 (UL 489) | |
| output | ||
| voltage curve at output | Controlled, isolated DC voltage | |
| number of outputs | 1 | |
| output voltage at DC rated value | 24 V | |
| output voltage | ||
| at output 1 at DC rated value | 24 V | |
| output voltage adjustable | Yes; via potentiometer | |
| adjustable output voltage | 24 ... 28 V; max. 480 W (576 W up to 45°C) | |
| relative overall tolerance of the voltage | 3 % | |
| relative control precision of the output voltage | ||
| on slow fluctuation of input voltage | 0.2 % | |
| on slow fluctuation of ohm loading | 0.2 % | |
| residual ripple | ||
| maximum | 80 mV | |
| typical | 50 mV | |
| voltage peak | ||
| maximum | 100 mV | |
| typical | 60 mV | |
| display version for normal operation | Green LED for 24 V OK | |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface | |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % | |
| response delay maximum | 0.5 s | |
| voltage increase time of the output voltage | ||
| typical | 100 ms | |
| output current | ||
| rated value | 20 A | |
| rated range | 0 ... 20 A; 24 A up to +45°C; +60 ... +70 °C: Derating 3%/K | |
| supplied active power typical | 480 W | |
| short-term overload current | ||
| on short-circuiting during the start-up typical | 30 A | |
| at short-circuit during operation typical | 30 A | |
| parallel switching of outputs | can be set with DIP switch | |
| bridging of equipment | Yes; switchable characteristic | |
| number of parallel-switched equipment resources for increasing the power | 2 | |
| efficiency | ||
| efficiency in percent | 95.5 % | |
| power loss [W] | ||
| at rated output voltage for rated value of the output current typical | 25 W | |
| during no-load operation maximum | 2.6 W | |
| closed-loop control | ||
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3 % | |
| setting time | ||
| load step 10 to 90% typical | 0.5 ms | |
| load step 90 to 10% typical | 0.5 ms | |
| maximum | 1 ms | |
| protection and monitoring | ||
| design of the overvoltage protection | < 32 V | |
| property of the output short-circuit proof | Yes | |
| design of short-circuit protection | Shutdown and periodic restart attempts | |
| typical | 30 A | |
| overcurrent overload capability | ||
| in normal operation | overload capability 150 % Iout rated up to 5 s/min | |
| safety | ||
| galvanic isolation between input and output | Yes | |
| galvanic isolation | ES1 output voltage Vout according to EN 62368-1 | |
| operating resource protection class | Class I | |
| leakage current | ||
| maximum | 3.5 mA | |
| protection class IP | IP20 | |
| EMC | ||
| standard | ||
| for emitted interference | EN 55022 Class B | |
| for mains harmonics limitation | EN 61000-3-2 | |
| for interference immunity | EN 61000-6-2 | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| CE marking | Yes | |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 | |
| CSA approval | Yes; CSA C22.2 No. 62368-1 | |
| UKCA marking | Yes | |
| EAC approval | Yes | |
| Regulatory Compliance Mark (RCM) | Yes | |
| NEC Class 2 | No | |
| SEMI F47 | Yes | |
| type of certification | ||
| BIS | Yes; R-41188271 | |
| CB-certificate | Yes | |
| standards, specifications, approvals hazardous environments | ||
| certificate of suitability | ||
| IECEx | Yes; IECEx Ex ec nC IIC T3 Gc | |
| ATEX | Yes; ATEX (EX) II 3G Ex ec nC IIC T4 Gc | |
| ULhazloc approval | Yes | |
| cCSAus, Class 1, Division 2 | Yes | |
| UKEX | Yes | |
| CCC for hazardous zone according to GB standard | Yes | |
| FM registration | No | |
| standards, specifications, approvals marine classification | ||
| shipbuilding approval | Yes | |
| Marine classification association | ||
| American Bureau of Shipping Europe Ltd. (ABS) | Yes | |
| French marine classification society (BV) | No | |
| Det Norske Veritas (DNV) | Yes | |
| Lloyds Register of Shipping (LRS) | No | |
