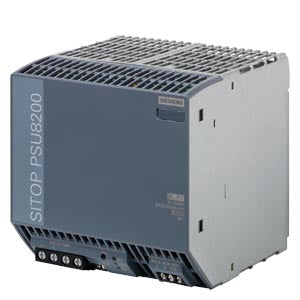

SITOP PSU8200 DC 24V/40A

input
type of the power supply network 1-phase and 2-phase AC
supply voltage at AC Automatic selection; startup starting from Ue ¥ 90/180 V
supply voltage 120 V/230 V
input voltage 1 at AC 85 ... 132 V
input voltage 2 at AC 170 ... 264 V
wide range input No
buffering time for rated value of the output current in the event of power failure minimum 25 ms
operating condition of the mains buffering at Vin = 230 V
line frequency 50/60 Hz
line frequency 45 ... 65 Hz
input current
at rated input voltage 120 V 15 A
at rated input voltage 230 V 9 A
current limitation of inrush current at 25 °C maximum 50 A
I2t value maximum 8 A²·s
fuse protection type Yes
fuse protection type in the feeder Recommended miniature circuit breaker at 1-phase operation: 16 A characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2421-4BA10 (120 V) or 3RV2411-1JA10 (230 V)
output
voltage curve at output Controlled, isolated DC voltage
output voltage at DC rated value 24 V
output voltage
at output 1 at DC rated value 24 V
output voltage adjustable Yes; via potentiometer
adjustable output voltage 24 ... 28 V; max. 960 W
relative overall tolerance of the voltage 3 %
relative control precision of the output voltage
on slow fluctuation of input voltage 0.1 %
on slow fluctuation of ohm loading 0.1 %
residual ripple
maximum 100 mV
typical 50 mV
voltage peak
maximum 240 mV
typical 220 mV
display version for normal operation Green LED for 24 V OK; LED yellow for overload; LED red for short-circuit or latching shutdown
type of signal at output Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
behavior of the output voltage when switching on Overshoot of Vout approx. 3 %
response delay maximum 1.5 s
voltage increase time of the output voltage
typical 30 ms
output current
rated value 40 A
rated range 0 ... 40 A; +60 ... +70 °C: Derating 3%/K
supplied active power typical 960 W
short-term overload current
on short-circuiting during the start-up typical 120 A
at short-circuit during operation typical 120 A
duration of overloading capability for excess current
on short-circuiting during the start-up 25 ms
at short-circuit during operation 25 ms
constant overload current
on short-circuiting during the start-up typical 60 A
bridging of equipment Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power 2
efficiency
efficiency in percent 92 %
power loss [W]
at rated output voltage for rated value of the output current typical 82 W
during no-load operation maximum 6.8 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical 1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical 1.9 %
setting time
load step 50 to 100% typical 2 ms
load step 100 to 50% typical 2 ms
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical 3.8 %
setting time
load step 10 to 90% typical 1 ms
load step 90 to 10% typical 1 ms
maximum 1 ms
protection and monitoring
design of the overvoltage protection < 32 V
property of the output short-circuit proof Yes
design of short-circuit protection Alternatively, constant current characteristic approx. 41 A or latching shutdown
typical 41 A
overcurrent overload capability
in normal operation 250% Iout rated up to 25 ms, 150% Iout rated up to 5 s/min
enduring short circuit current RMS value
typical 41 A
display version for overload and short circuit LED yellow for "overload", LED red for "latching shutdown" or "short-circuit"
safety
galvanic isolation between input and output Yes
galvanic isolation Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
operating resource protection class Class I
leakage current
maximum 0.1 mA
typical 0.1 mA
protection class IP IP20
EMC
standard
for emitted interference EN 55022 Class B
for mains harmonics limitation -
for interference immunity EN 61000-6-2
standards, specifications, approvals
certificate of suitability
CE marking Yes
UL approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
CSA approval Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
EAC approval Yes
Regulatory Compliance Mark (RCM) Yes
NEC Class 2 No
type of certification
BIS Yes; R-41183539
CB-certificate Yes
MTBF at 40 °C 838 156 h
standards, specifications, approvals hazardous environments
certificate of suitability
IECEx No
ATEX No
ULhazloc approval No
cCSAus, Class 1, Division 2 No
