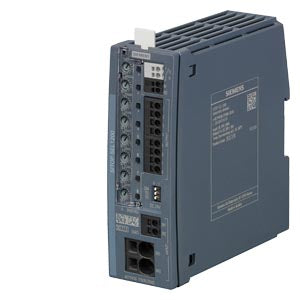

SITOP SEL1200 DC 24V/8x10A

input
type of the power supply network Controlled DC voltage
supply voltage at DC rated value 24 V
input voltage at DC 20.4 ... 30 V
overvoltage overload capability 35 V
input current at rated input voltage 24 V rated value 60 A
output
voltage curve at output controlled DC voltage
formula for output voltage Vin - approx. 0.2 V
relative overall tolerance of the voltage note In accordance with the supplying input voltage
number of outputs 8
output current up to 60 °C per output rated value 10 A; +60 ... +70 °C: Derating 2%/K
adjustable current response value current of the current-dependent overload release 2 ... 10 A
type of response value setting via potentiometer
response delay maximum 5 s
product feature parallel switching of outputs Yes
type of outputs connection Connection of all outputs after ramp-up of the supply voltage > 20 V; delay time of 25 ms, 200 ms, 500 ms or "load-optimized" can be set via DIP switch for sequential connection
efficiency
efficiency in percent 98 %
power loss [W] at rated output voltage for rated value of the output current typical 18 W
switch-off characteristic
switching characteristic
of the excess current Iout > 2.0 x set value, switch-off after approx. 30 ms, Iout > 1.8 x set value, switch-off after approx. 0.1 s, Iout > 1.5 x set value, switch-off after approx. 1 s, Iout > 1.0 x set value, switch-off after approx. 5 s
of the immediate switch-off Iout > set value and Vin < 20 V, switch-off after approx. 8 ms
design of the reset device/resetting mechanism via sensor per output
remote reset function Non-electrically isolated 24 V input (signal level "high" at > 15 V)
protection and monitoring
fuse protection type at input 16 A per output (not accessible)
display version for normal operation Three-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling function Floating common signal contact or status signal output (pulse/pause signal that can be evaluated via SIMATIC function block)
safety
galvanic isolation between input and output at switch-off No
standard for safety according to EN 62368-1
operating resource protection class Class III
protection class IP IP20
standard
for emitted interference EN 61000-6-3
for interference immunity EN 61000-6-2
standards, specifications, approvals
certificate of suitability
CE marking Yes
UL approval Yes; UL-Recognized (UL 2367) File E328600; cULus-Listed (UL 508, CSA C22.2 No. 107.1) File E197259
CSA approval Yes; cCSAus (CSA C22.2 62368-1, UL 62368-1)
EAC approval Yes
type of certification
CB-certificate Yes
MTBF at 40 °C 925 000 h
standards, specifications, approvals hazardous environments
certificate of suitability
IECEx No
ATEX No
standards, specifications, approvals marine classification
shipbuilding approval No
Marine classification association
Det Norske Veritas (DNV) Yes
standards, specifications, approvals Environmental Product Declaration
Environmental Product Declaration Yes
global warming potential [CO2 eq]
total 576.9 kg
during manufacturing 20.9 kg
during operation 344.2 kg
after end of life 0.33 kg
Siemens Eco Profile (SEP) Siemens EcoTech
ambient conditions
ambient temperature
during operation -40 ... +70; with natural convection
during transport -40 ... +85
during storage -40 ... +85
environmental category according to IEC 60721 Climate class 3K3, 5 ¦ 95% no condensation
connection method
type of electrical connection Push-in
at input 24V1, 24V2: push-in for 0.5 ... 16 mm²; 0V1, 0V2: push-in for 0.5 ... 4 mm²
at output Output 1 ... 8: push-in for 0.5 ... 4 mm²
for auxiliary contacts RST: push-in for 0.2 ... 1.5 mm²
for signaling contact 13, 14: push-in for 0.2 ... 1.5 mm²
mechanical data
width à height à depth of the enclosure 45 Ã 135 Ã 125 mm
installation width à mounting height 45 mm Ã 225 mm
required spacing
top 45 mm
bottom 45 mm
left 0 mm
right 0 mm
fastening method Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting Yes
S7 rail mounting No
wall mounting No
housing can be lined up Yes
net weight 0.3 kg
further information internet links
internet link
to website: Industry Mall https://mall.industry.siemens.com
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to web page: power supplies https://siemens.com/sitop
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
additional information
other information Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
security information
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
