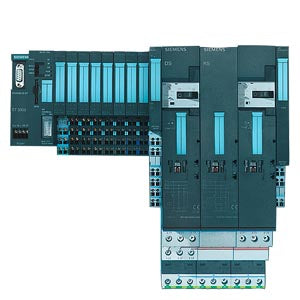

Siemens - 6ES7131-4FB00-0AB0
Siemens - 6ES7131-4FB00-0AB0
Regular price
€148,72 EUR
Regular price
Sale price
€148,72 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC DP 2DI AC 230V (5er Pack)
| Supply voltage | ||
| Rated value (AC) | 230 V | |
| Input current | ||
| from supply voltage L1, max. | Dependent on encoder | |
| from backplane bus 3.3 V DC, max. | 6 mA | |
| Power loss | ||
| Power loss, typ. | 0.7 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte | |
| with packing | 2 bit | |
| Digital inputs | ||
| Number of digital inputs | 2 | |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |
| Input voltage | ||
| Type of input voltage | AC | |
| Rated value (AC) | 230 V; 47 ... 63 Hz | |
| for signal "0" | 0V AC to 40V AC | |
| for signal "1" | 164V AC to 264V AC | |
| Input current | ||
| for signal "1", typ. | 5 mA; 5 to 15mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| at "0" to "1", min. | 15 ms | |
| at "1" to "0", min. | 45 ms | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | No | |
| permissible quiescent current (2-wire sensor), max. | 2 mA | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | No | |
| Diagnoses | ||
| Short-circuit | No | |
| Diagnostics indication LED | ||
| Status indicator digital input (green) | Yes; per channel | |
| Parameter | ||
| Remark | 3 byte | |
| Potential separation | ||
| Potential separation digital inputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 4 000 V DC | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 81 mm | |
| Depth | 52 mm | |
| Weights | ||
| Weight, approx. | 31 g | |
| Approvals / Certificates | ||
