Siemens - 6ES7131-6BF00-0CA0
Siemens - 6ES7131-6BF00-0CA0
Regular price
€32,88 EUR
Regular price
Sale price
€32,88 EUR
Couldn't load pickup availability
22 in stock

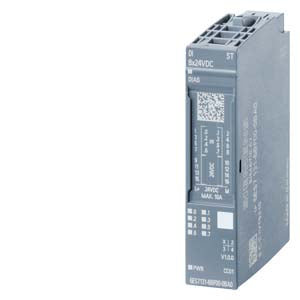

SIMATIC ET 200SP DI 8x 24VDC HF
| General information | ||
| Product type designation | DI 8x24 V DC HF | |
| HW functional status | From FS07 | |
| Firmware version | ||
| FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC01 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | Yes; 250 µs | |
| suitable for operation on PROFINET R1 IMs | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - | |
| STEP 7 configurable/integrated from version | V5.5 / - | |
| PCS 7 configurable/integrated from version | V8.1 SP1 | |
| PCS neo can be configured/integrated from version | from V1.0.0 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DI | Yes | |
| Counter | No | |
| Oversampling | No | |
| MSI | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 20 mA | |
| Current consumption, max. | 39 mA | |
| Encoder supply | ||
| Number of outputs | 8 | |
| Output voltage, min. | 19.2 V | |
| Short-circuit protection | Yes | |
| 24 V encoder supply | ||
| 24 V | Yes | |
| Short-circuit protection | Yes; per channel, electronic | |
| Output current per channel, max. | 700 mA | |
| Output current per module, max. | 700 mA | |
| Power loss | ||
| Power loss, typ. | 1.5 W; 24 V, 8 inputs supplied via encoder supply | |
| Address area | ||
| Address space per module | ||
| Inputs | 1 byte; + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | Type A | |
| Submodules | ||
| Number of configurable submodules, max. | 4 | |
| Selection of BaseUnit for connection variants | ||
| 1-wire connection | BU type A0 | |
| 2-wire connection | BU type A0 | |
| 3-wire connection | BU type A0 with AUX terminals or potential distributor module | |
| 4-wire connection | BU type A0 + Potential distributor module | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Digital inputs, parameterizable | Yes | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Pulse extension | Yes; Pulse duration from 4 µs | |
| Length | 2 s; 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s | |
| Edge evaluation | Yes; rising edge, falling edge, edge change | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -30 to +5 V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 2.5 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length) | |
| at "0" to "1", min. | 0.05 ms | |
| at "0" to "1", max. | 20 ms | |
| at "1" to "0", min. | 0.05 ms | |
| at "1" to "0", max. | 20 ms | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Isochronous mode | ||
| Filtering and processing time (TCI), min. | 420 µs | |
| Bus cycle time (TDP), min. | 500 µs | |
| Jitter, max. | 8 µs | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes; channel by channel | |
| Hardware interrupt | Yes; Parameterizable, channels 0 to 7 | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Monitoring the supply voltage | Yes | |
| parameterizable | Yes | |
| Monitoring of encoder power supply | Yes; channel by channel | |
| Wire-break | Yes; Channel by channel, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm | |
| Short-circuit | Yes; channel by channel | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 15.9 kg | |
| global warming potential, (during production) [CO2 eq] | 3.69 kg | |
| global warming potential, (during operation) [CO2 eq] | 12.7 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.495 kg | |
