Siemens - 6ES7131-6CF00-0AU0
Siemens - 6ES7131-6CF00-0AU0
Regular price
€41,50 EUR
Regular price
Sale price
€41,50 EUR
Couldn't load pickup availability
Low stock: 5 left

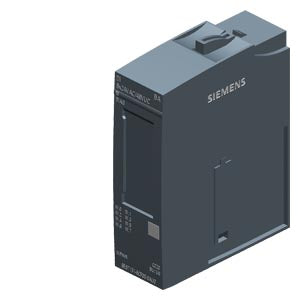

SIMATIC ET 200SP DI 8x 24VAC/48VUC BA
| General information | ||
| Product type designation | DI 8x24VAC/48VUC BA | |
| HW functional status | From FS02 | |
| Firmware version | V0.0 | |
| FW update possible | No | |
| usable BaseUnits | BU type U0 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| suitable for operation on PROFINET R1 IMs | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V15 | |
| STEP 7 configurable/integrated from version | V5.6 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DI | Yes | |
| Counter | No | |
| Oversampling | No | |
| MSI | No | |
| Supply voltage | ||
| Rated value (DC) | 48 V | |
| permissible range, lower limit (DC) | 40.8 V | |
| permissible range, upper limit (DC) | 57.6 V | |
| Rated value (AC) | 48 V; 24 V/48 V; 50 Hz/60 Hz | |
| permissible range, lower limit (AC) | 40.8 V | |
| permissible range, upper limit (AC) | 52.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 70 mA; without sensor supply | |
| Encoder supply | ||
| Number of outputs | 8 | |
| Short-circuit protection | Yes; Per module, 5x 20 mm fuse, 2 A/250 V, quick-response, replaceable | |
| Output current | ||
| up to 60 °C, max. | 1 A | |
| 24 V encoder supply | ||
| 24 V | No | |
| Power loss | ||
| Power loss, typ. | 1.5 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte | |
| Hardware configuration | ||
| Automatic encoding | ||
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Selection of BaseUnit for connection variants | ||
| 1-wire connection | BU type U0 | |
| 2-wire connection | BU type U0 | |
| 3-wire connection | BU type U0 + Potential distributor module | |
| 4-wire connection | BU type U0 + Potential distributor module | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |
| Input characteristic curve in accordance with IEC 61131, type 2 | No | |
| Input characteristic curve in accordance with IEC 61131, type 3 | No | |
| Pulse extension | No | |
| Input voltage | ||
| for signal "0" | AC/DC < 10 V | |
| for signal "1" | AC > 14 V, DC > 34 V | |
| Input current | ||
| for signal "1", typ. | 3.5 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | No | |
| at "0" to "1", max. | 15 ms | |
| at "1" to "0", max. | 20 ms | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Monitoring the supply voltage | Yes | |
| Monitoring of encoder power supply | Yes | |
| Group error | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 1 200 V DC between supply voltage and backplane bus | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 40 g | |
| Approvals / Certificates | ||
