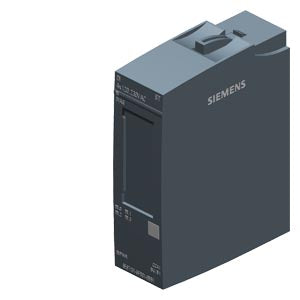

SIMATIC ET 200SP DI 4x 120...230VAC ST
| General information | ||
| Product type designation | DI 4x120 ... 230 V AC ST | |
| HW functional status | from FS04 | |
| Firmware version | V0.0 | |
| FW update possible | No | |
| usable BaseUnits | BU type B1 | |
| Color code for module-specific color identification plate | CC41 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| suitable for operation on PROFINET R1 IMs | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DI | Yes | |
| Counter | No | |
| Oversampling | No | |
| MSI | No | |
| Supply voltage | ||
| Rated value (AC) | 230 V | |
| permissible range, upper limit (AC) | 264 V | |
| Reverse polarity protection | No | |
| Input current | ||
| Current consumption (rated value) | 10 mA | |
| Encoder supply | ||
| Number of outputs | 4 | |
| Short-circuit protection | No; when using BU type B1, a fuse with 10 A tripping current must be provided | |
| Output current | ||
| up to 60 °C, max. | 10 A | |
| Power loss | ||
| Power loss, typ. | 1 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte; + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Selection of BaseUnit for connection variants | ||
| 1-wire connection | BU type B1 | |
| 2-wire connection | BU type B1 | |
| 3-wire connection | BU type B1 | |
| 4-wire connection | BU type B1 + potential distributor module | |
| Digital inputs | ||
| Number of digital inputs | 4 | |
| Digital inputs, parameterizable | Yes | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Input voltage | ||
| Rated value (AC) | 230 V | |
| for signal "0" | 0V AC to 40V AC | |
| for signal "1" | 74 V AC to 264 V AC | |
| Input current | ||
| for signal "1", typ. | 10.8 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | No | |
| at "0" to "1", min. | 1.5 ms | |
| at "0" to "1", max. | 4 ms | |
| at "1" to "0", min. | 10 ms | |
| at "1" to "0", max. | 10 ms | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | No | |
| Maintenance interrupt | No | |
| Hardware interrupt | No | |
| Diagnoses | ||
| Monitoring the supply voltage | No | |
| Wire-break | No | |
| Short-circuit | No | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 2 545 V DC/2 s (routine test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 36 g | |
| Approvals / Certificates | ||
