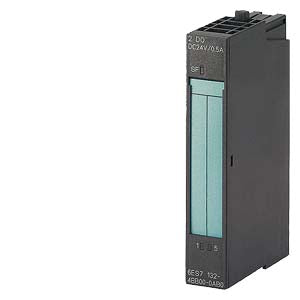

Siemens - 6ES7132-4BB31-0AB0
Siemens - 6ES7132-4BB31-0AB0
Regular price
€245,25 EUR
Regular price
Sale price
€245,25 EUR
Couldn't load pickup availability
Low stock: 3 left
SIMATIC DP 2DO DC 24V/2A HF (5er Pack)
| Supply voltage | ||
| Reverse voltage protection | Yes; when using the same load voltage as on the power module | |
| Load voltage L+ | ||
| Rated value (DC) | 24 V; From power module | |
| Reverse polarity protection | Yes; polarity reversal can lead to the digital outputs being connected through | |
| Input current | ||
| from load voltage L+ (without load), max. | 5 mA; Per channel | |
| from backplane bus 3.3 V DC, max. | 10 mA | |
| Power loss | ||
| Power loss, typ. | 1.4 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte | |
| with packing | 2 bit | |
| Digital outputs | ||
| Type of digital output | Source output (PNP, current-sourcing) | |
| Number of digital outputs | 2 | |
| Short-circuit protection | Yes | |
| Response threshold, typ. | 4 A | |
| Limitation of inductive shutdown voltage to | -55 to -60 V, typ. L+( ) | |
| Controlling a digital input | Yes | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 12 ¦ | |
| upper limit | 3 400 ¦ | |
| Output voltage | ||
| for signal "1", min. | L+ (-1 V) | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| for signal "1" permissible range, min. | 7 mA | |
| for signal "1" permissible range, max. | 2.4 A | |
| for signal "0" residual current, max. | 0.5 mA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 100 µs | |
| "1" to "0", max. | 400 µs | |
| Parallel switching of two outputs | ||
| for uprating | No | |
| for redundant control of a load | Yes; per module | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz | |
| with inductive load, max. | 2 Hz; 0,5 H | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs | ||
| Current per module, max. | 4 A | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes; 0/1 | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Wire-break | Yes; channel by channel | |
| Short-circuit | Yes; channel by channel | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Status indicator digital output (green) | Yes | |
| Parameter | ||
| Remark | 3 byte | |
| Diagnostics wire break | Disable / enable | |
| Diagnostics short-circuit | Disable / enable | |
| Response to CPU/master STOP | Substitute a value/keep last value | |
| Potential separation | ||
| Potential separation digital outputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 500 V DC | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 81 mm | |
| Depth | 52 mm | |
| Weights | ||
| Weight, approx. | 40 g | |
| Approvals / Certificates | ||
