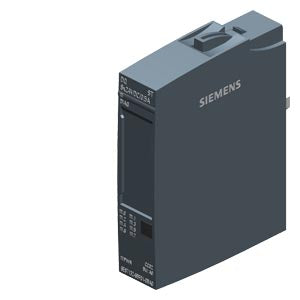

SIMATIC ET 200SP DQ 8x 24VDC/0.5A ST (10er Pack)
| General information | ||
| Product type designation | DQ 8x24VDC/0.5A ST | |
| HW functional status | from FS21 | |
| Firmware version | V0.0 | |
| FW update possible | No | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC02 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 TIA V14 with HSP0222 / integrated as of TIA V15 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1 | |
| PCS 7 configurable/integrated from version | V8.1 SP1 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DQ | Yes | |
| DQ with energy-saving function | No | |
| PWM | No | |
| Oversampling | No | |
| MSO | No | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 20 mA; without load | |
| output voltage / header | ||
| Rated value (DC) | 24 V | |
| Power loss | ||
| Power loss, typ. | 1 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte; + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | Type A | |
| Selection of BaseUnit for connection variants | ||
| 1-wire connection | BU type A0 | |
| 2-wire connection | BU type A0 | |
| 3-wire connection | BU type A0 with AUX terminals or potential distributor module | |
| 4-wire connection | BU type A0 + Potential distributor module | |
| Digital outputs | ||
| Type of digital output | Source output (PNP, current-sourcing) | |
| Number of digital outputs | 8 | |
| Current-sinking | No | |
| Current-sourcing | Yes | |
| Digital outputs, parameterizable | Yes | |
| output type acc. to IEC 61131, type 0.5 | Yes | |
| Short-circuit protection | Yes; Electronic | |
| Response threshold, typ. | 1 A; 0.7 to 1.3 A | |
| Open-circuit detection | Yes | |
| Limitation of inductive shutdown voltage to | Typ. L+ (-50 V) | |
| Controlling a digital input | Yes | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 0.5 A | |
| with inductive load, max. | 0.5 A | |
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 48 ¦ | |
| upper limit | 12 k¦ | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "1" permissible range, max. | 0.5 A | |
| for signal "0" residual current, max. | 0.1 mA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 50 µs; at rated load | |
| "1" to "0", max. | 100 µs; at rated load | |
| Parallel switching of two outputs | ||
| for uprating | No | |
| for redundant control of a load | Yes | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz | |
| with inductive load, max. | 0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads" | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs | ||
| Current per channel, max. | 0.5 A | |
| Current per module, max. | 4 A | |
| Total current of the outputs (per module) | ||
| horizontal installation | ||
| up to 60 °C, max. | 4 A | |
| vertical installation | ||
| up to 50 °C, max. | 4 A | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | Yes; Module-wise | |
| Short-circuit to M | Yes; Module-wise | |
| Short-circuit to L+ | Yes; Module-wise | |
| Group error | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green PWR LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green PWR LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Between the channels and load voltage L+ | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Suitable for safety-related tripping of standard modules | No | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 20.4 kg | |
| global warming potential, (during production) [CO2 eq] | 3.16 kg | |
| global warming potential, (during operation) [CO2 eq] | 17.5 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | ||
