Siemens - 6ES7132-6FD00-0BB1
Siemens - 6ES7132-6FD00-0BB1
Regular price
€72,49 EUR
Regular price
Sale price
€72,49 EUR
Couldn't load pickup availability
Low stock: 3 left

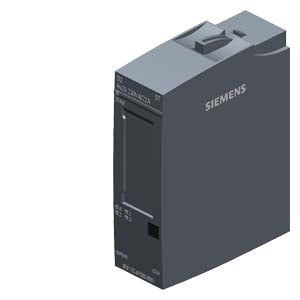

SIMATIC ET 200SP DQ 4x 24...230VAC/2A ST
| General information | ||
| Product type designation | DQ 4x24 ... 230 V AC/2 A ST | |
| HW functional status | From FS05 | |
| Firmware version | V1.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type B1 | |
| Color code for module-specific color identification plate | CC41 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 / V13 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | GSD Revision 5 | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DQ | Yes | |
| DQ with energy-saving function | No | |
| PWM | No | |
| Oversampling | No | |
| MSO | No | |
| Supply voltage | ||
| Rated value (AC) | 230 V | |
| permissible range, lower limit (AC) | 20.4 V | |
| permissible range, upper limit (AC) | 264 V | |
| Input current | ||
| Current consumption (rated value) | 11.5 mA | |
| output voltage / header | ||
| Rated value (AC) | 230 V; 24V AC to 230V AC | |
| Power loss | ||
| Power loss, typ. | 9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte; + 1 byte for QI information | |
| Inputs | 1 byte; With QI | |
| Outputs | 1 byte | |
| Hardware configuration | ||
| Automatic encoding | ||
| Type of mechanical coding element | type C | |
| Digital outputs | ||
| Type of digital output | Triac with zero point detection | |
| Number of digital outputs | 4 | |
| Current-sinking | No | |
| Current-sourcing | Yes | |
| Digital outputs, parameterizable | No | |
| Short-circuit protection | No; When using BU type B1, a miniature, quick-response fuse with 10 A tripping current must be provided | |
| Controlling a digital input | Yes | |
| Size of motor starters according to NEMA, max. | 5 | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 2 A | |
| on lamp load, max. | 100 W | |
| Output voltage | ||
| for signal "1", min. | 20.4 V | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| for signal "1" permissible range, min. | 10 mA | |
| for signal "1" permissible range, max. | 2 A | |
| for signal "0" residual current, max. | 460 µA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 10 ms | |
| "1" to "0", max. | 10 ms | |
| Parallel switching of two outputs | ||
| for logic links | No | |
| for uprating | No | |
| for redundant control of a load | Yes | |
| Switching frequency | ||
| with resistive load, max. | 10 Hz | |
| with inductive load, max. | 0.5 Hz; Higher frequencies are possible, see Equipment Manual / Product Information | |
| on lamp load, max. | 1 Hz | |
| Total current of the outputs | ||
| Current per channel, max. | 2 A | |
| Current per module, max. | 8 A | |
| Total current of the outputs (per module) | ||
| horizontal installation | ||
| up to 40 °C, max. | 8 A | |
| up to 50 °C, max. | 6 A | |
| up to 60 °C, max. | 4 A | |
| vertical installation | ||
| up to 30 °C, max. | 8 A | |
| up to 40 °C, max. | 6 A | |
| up to 50 °C, max. | 4 A | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | No | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | No | |
| Diagnoses | ||
| Monitoring the supply voltage | No | |
| Wire-break | No | |
| Short-circuit | No | |
| Group error | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 2 545 V DC/2 s (routine test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 60 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 50 g | |
| Approvals / Certificates | ||
