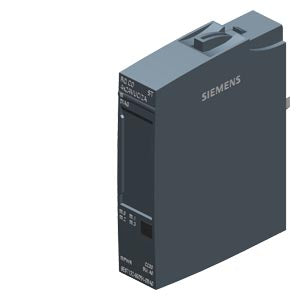

Siemens - 6ES7132-6GD51-0BA0
Siemens - 6ES7132-6GD51-0BA0
Regular price
€31,14 EUR
Regular price
Sale price
€31,14 EUR
Couldn't load pickup availability
13 in stock
SIMATIC ET 200SP RQ 4x 24VUC/2A CO ST
| General information | ||
| Product type designation | RQ CO 4x24VDC/2A ST | |
| HW functional status | From FS02 | |
| Firmware version | V0.0 | |
| FW update possible | No | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC00 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| DQ | Yes | |
| DQ with energy-saving function | No | |
| PWM | No | |
| Oversampling | No | |
| MSO | No | |
| Redundancy | ||
| Redundancy capability | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 50 mA | |
| Power loss | ||
| Power loss, typ. | 1.2 W | |
| Address area | ||
| Address space per module | ||
| Inputs | + 1 byte for QI information | |
| Outputs | 1 byte | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Digital outputs | ||
| Type of digital output | Relays | |
| Number of digital outputs | 4 | |
| Current-sinking | Yes | |
| Current-sourcing | Yes | |
| Digital outputs, parameterizable | Yes | |
| Short-circuit protection | No | |
| Parallel switching of two outputs | ||
| for logic links | Yes | |
| for uprating | No | |
| for redundant control of a load | Yes | |
| Switching frequency | ||
| with resistive load, max. | 2 Hz | |
| Total current of the outputs | ||
| Current per channel, max. | 2 A | |
| Current per module, max. | 8 A | |
| Total current of the outputs (per module) | ||
| horizontal installation | ||
| up to 40 °C, max. | 8 A | |
| up to 50 °C, max. | 6 A | |
| up to 60 °C, max. | 4 A | |
| vertical installation | ||
| up to 30 °C, max. | 8 A | |
| up to 40 °C, max. | 6 A | |
| up to 50 °C, max. | 4 A | |
| Relay outputs | ||
| Number of relay outputs | 4 | |
| Rated supply voltage of relay coil L+ (DC) | 24 V | |
| Current consumption of relays (coil current of all relays), max. | 40 mA | |
| Number of operating cycles, max. | 500 000 | |
| Switching capacity of contacts | ||
| with resistive load, max. | 2 A | |
| Thermal continuous current, max. | 2 A | |
| Switching current, min. | 1 mA; 5 V DC | |
| Rated switching voltage (DC) | 24 V | |
| Rated switching voltage (AC) | 24 V | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 200 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | No | |
| Short-circuit | No | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | Yes | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 30 g | |
| Approvals / Certificates | ||
