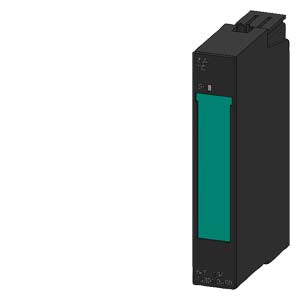

SIMATIC DP 2AI TC ST
| General information | ||
| Product function | ||
| Isochronous mode | No | |
| Supply voltage | ||
| Load voltage L+ | ||
| Rated value (DC) | 24 V; From power module | |
| Reverse polarity protection | Yes | |
| Input current | ||
| from load voltage L+ (without load), max. | 30 mA | |
| from backplane bus 3.3 V DC, max. | 10 mA | |
| Power loss | ||
| Power loss, typ. | 0.6 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 4 byte | |
| Analog inputs | ||
| Number of analog inputs | 2 | |
| permissible input voltage for voltage input (destruction limit), max. | 10 V; Permanent | |
| Cycle time (all channels) max. | Number of active channels per module x basic conversion time | |
| Technical unit for temperature measurement adjustable | No; Celsius | |
| Input ranges (rated values), voltages | ||
| -80 mV to +80 mV | Yes | |
| Input resistance (-80 mV to +80 mV) | 1 M¦ | |
| Input ranges (rated values), thermocouples | ||
| Type B | Yes | |
| Input resistance (Type B) | 1 M¦ | |
| Type E | Yes | |
| Input resistance (Type E) | 1 M¦ | |
| Type J | Yes | |
| Input resistance (type J) | 1 M¦ | |
| Type K | Yes | |
| Input resistance (Type K) | 1 M¦ | |
| Type L | Yes | |
| Input resistance (Type L) | 1 M¦ | |
| Type N | Yes | |
| Input resistance (Type N) | 1 M¦ | |
| Type R | Yes | |
| Input resistance (Type R) | 1 M¦ | |
| Type S | Yes | |
| Input resistance (Type S) | 1 M¦ | |
| Type T | Yes | |
| Input resistance (Type T) | 1 M¦ | |
| Thermocouple (TC) | ||
| Temperature compensation | ||
| internal temperature compensation | Not possible | |
| external temperature compensation with compensations socket | Yes; possible, one external compensating box per channel | |
| Characteristic linearization | ||
| parameterizable | Yes; Type B, E, J, K, L, N, R, S, T to IEC 584 | |
| Cable length | ||
| shielded, max. | 50 m | |
| Analog value generation for the inputs | ||
| Measurement principle | integrating | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit; 15 bit + sign | |
| Integration time, parameterizable | Yes | |
| Integration time (ms) | 16,7 / 20 ms | |
| Interference voltage suppression for interference frequency f1 in Hz | 50 / 60 Hz | |
| Conversion time (per channel) | 65 s; 55 / 65 ms (additional 20 ms on activated wire-break test) | |
| Smoothing of measured values | ||
| parameterizable | Yes; In four stages by means of digital filtering | |
| Step: None | Yes; 1x cycle time | |
| Step: low | Yes; 4x cycle time | |
| Step: Medium | Yes; 32x cycle time | |
| Step: High | Yes; 64x cycle time | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| Errors/accuracies | ||
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.6 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.4 % | |
| Interrupts/diagnostics/status information | ||
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Wire-break | Yes; A break in the wire is only detected for thermocouples | |
| Group error | Yes | |
| Overflow/underflow | Yes | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Parameter | ||
| Remark | 4 byte | |
| Diagnostics wire break | Disable / enable (wire break is detected only in thermocouples) | |
| Group diagnostics | Disable / enable | |
| Overflow/underflow | Disable / enable | |
| Comparison point | none / RTD | |
| Comparison point number | None / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 | |
| Potential separation | ||
| Potential separation analog inputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Between the channels and load voltage L+ | Yes | |
| Isolation | ||
| Isolation tested with | 500 V DC | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 81 mm | |
| Depth | 52 mm | |
| Weights | ||
| Weight, approx. | 40 g | |
