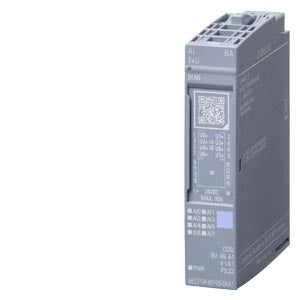

SIMATIC ET 200SP AI 8xU BA
| General information | ||
| Product type designation | AI 8xU BA | |
| HW functional status | FS23 or higher | |
| Firmware version | V2.0.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type A0, A1 | |
| Color code for module-specific color identification plate | CC02 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Measuring range scalable | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | TIA Portal V21 | |
| STEP 7 configurable/integrated from version | V5.7 SP3 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.45 | |
| Operating mode | ||
| Oversampling | No | |
| MSI | No | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | No | |
| Calibration possible in RUN | No | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 25 mA; rated voltage, all channels active, no load | |
| Current consumption, max. | 25 mA; worst case voltage, all channels active, max. load, no derating | |
| Power loss | ||
| Power loss, typ. | 0.7 W; rated voltage, 50 % active channels, 50 % of range | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 16 byte | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type B | |
| Selection of BaseUnit for connection variants | ||
| 1-wire connection | BU type A0, A1 | |
| 2-wire connection | BU type A0, A1 | |
| Analog inputs | ||
| Number of analog inputs | 8; Single-ended | |
| For voltage measurement | 8 | |
| permissible input voltage for voltage input (destruction limit), max. | 30 V | |
| Cycle time (all channels), min. | 1 ms; per channel | |
| Input ranges (rated values), voltages | ||
| 0 to +10 V | Yes; 15 bit | |
| Input resistance (0 to 10 V) | 100 k¦ | |
| -10 V to +10 V | Yes; 16 bit incl. sign | |
| Input resistance (-10 V to +10 V) | 100 k¦ | |
| Cable length | ||
| shielded, max. | 200 m | |
| Analog value generation for the inputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Integration time, parameterizable | Yes | |
| Interference voltage suppression for interference frequency f1 in Hz | 16.67 / 50 / 60 / 4 800 (16.67 / 50 / 60) | |
| Conversion time (per channel) | 180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms | |
| Smoothing of measured values | ||
| Number of smoothing levels | 4 | |
| parameterizable | Yes | |
| Step: None | Yes | |
| Step: low | Yes; 4x smoothing | |
| Step: Medium | Yes; 8x smoothing | |
| Step: High | Yes; 16x smoothing | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| for current measurement as 4-wire transducer | No | |
| Errors/accuracies | ||
| Linearity error (relative to input range), (+/-) | 0.01 % | |
| Temperature error (relative to input range), (+/-) | 0.005 %/K | |
| Crosstalk between the inputs, min. | -50 dB | |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.05 % | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.5 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.3 % | |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||
| Series mode interference (peak value of interference < rated value of input range), min. | 70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Limit value alarm | No | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | No | |
| Short-circuit | No | |
| Group error | Yes | |
| Overflow/underflow | Yes; Module-wise | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| product functions / security / header | ||
| signed firmware update | Yes; firmware V2.0.0 or higher | |
| safely removing data | Yes; firmware V2.0.0 or higher | |
| data integrity | Yes; firmware V2.0.0 or higher | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C; < 0 °C as of FS04 | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C; < 0 °C as of FS04 | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 73 mm | |
| Depth | 5 | |
