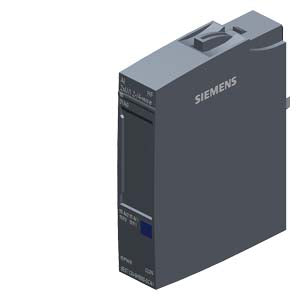

Siemens - 6ES7134-6HB00-0CA1
Siemens - 6ES7134-6HB00-0CA1
Regular price
€128,28 EUR
Regular price
Sale price
€128,28 EUR
Couldn't load pickup availability
47 in stock
SIMATIC ET 200SP AI 2xU/I 2-/4-wire HF
| General information | ||
| Product type designation | AI 2xU/I 2-/4-wire HF | |
| HW functional status | From FS06 | |
| Firmware version | ||
| FW update possible | Yes | |
| usable BaseUnits | BU type A0, A1 | |
| Color code for module-specific color identification plate | CC03 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | Yes; 250 µs | |
| Measuring range scalable | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 | |
| STEP 7 configurable/integrated from version | V5.5 / - | |
| PCS 7 configurable/integrated from version | V8.1 SP1 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| Oversampling | No | |
| MSI | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 39 mA; without sensor supply | |
| Encoder supply | ||
| 24 V encoder supply | ||
| 24 V | Yes | |
| Short-circuit protection | Yes | |
| Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s (two-wire) | |
| Additional 24 V encoder supply | ||
| Short-circuit protection | Yes; channel by channel | |
| Output current, max. | 100 mA; max. 150 mA for a duration of < 10 s (four-wire) | |
| Power loss | ||
| Power loss, typ. | 0.95 W; without sensor supply | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 4 byte; + 4 byte for scaling of measured values, + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | Type A | |
| Selection of BaseUnit for connection variants | ||
| 2-wire connection | BU type A0, A1 | |
| 4-wire connection | BU type A0, A1 | |
| Analog inputs | ||
| Number of analog inputs | 2; Differential inputs | |
| For current measurement | 2 | |
| For voltage measurement | 2 | |
| permissible input voltage for voltage input (destruction limit), max. | 30 V | |
| permissible input current for current input (destruction limit), max. | 50 mA | |
| Analog input with oversampling | No | |
| Standardization of measured values | Yes | |
| Input ranges (rated values), voltages | ||
| 0 to +10 V | Yes; 15 bit | |
| Input resistance (0 to 10 V) | 75 k¦ | |
| 1 V to 5 V | Yes; 15 bit | |
| Input resistance (1 V to 5 V) | 75 k¦ | |
| -10 V to +10 V | Yes; 16 bit incl. sign | |
| Input resistance (-10 V to +10 V) | 75 k¦ | |
| -5 V to +5 V | Yes; 16 bit incl. sign | |
| Input resistance (-5 V to +5 V) | 75 k¦ | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | Yes; 15 bit | |
| Input resistance (0 to 20 mA) | 130 ¦ | |
| -20 mA to +20 mA | Yes; 16 bit incl. sign | |
| Input resistance (-20 mA to +20 mA) | 130 ¦ | |
| 4 mA to 20 mA | Yes; 15 bit | |
| Input resistance (4 mA to 20 mA) | 130 ¦ | |
| Cable length | ||
| shielded, max. | 1 000 m; 200 m for voltage measurement | |
| Analog value generation for the inputs | ||
| Measurement principle | Sigma Delta | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Integration time, parameterizable | Yes | |
| Integration time (ms) | 67.5 / 22.5 / 18.75 / 10 / 5 / 2.5 / 1.25 / 0.625 ms | |
| Basic conversion time, including integration time (ms) | 68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms | |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 / 300 / 600 / 1 200 / 2 400 / 4 800 | |
| Conversion time (per channel) | 68.2 / 23 / 19.2 / 10.45 / 5.40 / 2.85 / 1.6 / 0.9 ms | |
| Basic execution time of the module (all channels released) | 1 ms | |
| Smoothing of measured values | ||
| Number of smoothing levels | 6; none; 2-/4-/8-/16-/32-fold | |
| parameterizable | Yes | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| for current measurement as 2-wire transducer | Yes | |
| Burden of 2-wire transmitter, max. | 650 ¦ | |
| for current measurement as 4-wire transducer | Yes | |
| Errors/accuracies | ||
| Linearity error (relative to input range), (+/-) | 0.01 % | |
| Temperature error (relative to input range), (+/-) | 0.003 %/K | |
| Crosstalk between the inputs, min. | -50 dB | |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.01 % | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.1 % | |
| Current, relative to input range, (+/-) | 0.1 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.05 %; 0.1 % at SFU 4.8 kHz | |
| Current, relative to input range, (+/-) | 0.05 %; 0.1 % at SFU 4.8 kHz | |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||
| Common mode voltage, max. | 35 V | |
| Common mode interference, min. | 90 dB | |
| Isochronous mode | ||
| Filtering and processing time (TCI), min. | 800 µs | |
| Bus cycle time (TDP), min. | 1 ms | |
| Jitter, max. | 5 µs | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Limit value alarm | Yes; two upper and two lower limit values in each case | |
| Diagnoses | ||
