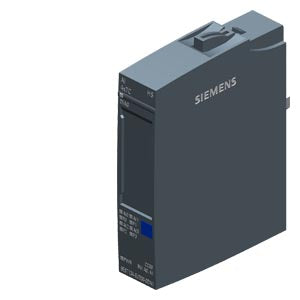

Siemens - 6ES7134-6JD00-0DA1
Siemens - 6ES7134-6JD00-0DA1
Regular price
€144,45 EUR
Regular price
Sale price
€144,45 EUR
Couldn't load pickup availability
19 in stock
SIMATIC ET 200SP AI 4xTC HF
| General information | ||
| Product type designation | AI 4xTC HS | |
| HW functional status | From FS02 | |
| Firmware version | ||
| FW update possible | Yes | |
| usable BaseUnits | BU type A0, A1 | |
| Color code for module-specific color identification plate | CC00 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Measuring range scalable | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V15 with HSP 265/integrated as of V15.1 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 or higher | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| Oversampling | No | |
| MSI | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 37 mA | |
| Current consumption, max. | 50 mA | |
| Power loss | ||
| Power loss, typ. | 0.9 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 16 byte; + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | Type A | |
| Selection of BaseUnit for connection variants | ||
| 2-wire connection | BU type A0, A1 | |
| Analog inputs | ||
| Number of analog inputs | 4 | |
| permissible input voltage for voltage input (destruction limit), max. | 30 V | |
| Cycle time (all channels), min. | 5 ms; Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels) | |
| Technical unit for temperature measurement adjustable | Yes; °C/°F/K | |
| Input ranges (rated values), voltages | ||
| -1 V to +1 V | Yes; 16 bit incl. sign | |
| Input resistance (-1 V to +1 V) | 1 M¦ | |
| -250 mV to +250 mV | Yes; 16 bit incl. sign | |
| Input resistance (-250 mV to +250 mV) | 1 M¦ | |
| -50 mV to +50 mV | Yes; 16 bit incl. sign | |
| Input resistance (-50 mV to +50 mV) | 1 M¦ | |
| -80 mV to +80 mV | Yes; 16 bit incl. sign | |
| Input resistance (-80 mV to +80 mV) | 1 M¦ | |
| Input ranges (rated values), thermocouples | ||
| Type B | Yes; 16 bit incl. sign | |
| Input resistance (Type B) | 1 M¦ | |
| Type C | Yes; 16 bit incl. sign | |
| Input resistance (Type C) | 1 M¦ | |
| Type E | Yes; 16 bit incl. sign | |
| Input resistance (Type E) | 1 M¦ | |
| Type J | Yes; 16 bit incl. sign | |
| Input resistance (type J) | 1 M¦ | |
| Type K | Yes; 16 bit incl. sign | |
| Input resistance (Type K) | 1 M¦ | |
| Type L | Yes; 16 bit incl. sign | |
| Input resistance (Type L) | 1 M¦ | |
| Type N | Yes; 16 bit incl. sign | |
| Input resistance (Type N) | 1 M¦ | |
| Type R | Yes; 16 bit incl. sign | |
| Input resistance (Type R) | 1 M¦ | |
| Type S | Yes; 16 bit incl. sign | |
| Input resistance (Type S) | 1 M¦ | |
| Type T | Yes; 16 bit incl. sign | |
| Input resistance (Type T) | 1 M¦ | |
| Type U | Yes; 16 bit incl. sign | |
| Input resistance (Type U) | 1 M¦ | |
| Type TXK/TXK(L) to GOST | Yes; 16 bit incl. sign | |
| Input resistance (Type TXK/TXK(L) to GOST) | 1 M¦ | |
| Thermocouple (TC) | ||
| Temperature compensation | ||
| parameterizable | Yes | |
| Reference channel of the module | No | |
| internal comparison point | Yes; with BaseUnit type A1 | |
| Reference channel of the group | Yes | |
| Number of reference channel groups | 4; Group 0 to 3 | |
| fixed reference temperature | Yes | |
| Cable length | ||
| shielded, max. | 200 m; 100 m for thermocouples | |
| Analog value generation for the inputs | ||
| Measurement principle | integrating (Sigma-Delta) | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Integration time, parameterizable | Yes | |
| Basic conversion time, including integration time (ms) | ||
| additional processing time for wire-break check | 1 ms | |
| Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 Hz / off | |
| Conversion time (per channel) | 180/60/50/1.25 ms | |
| Smoothing of measured values | ||
| Number of smoothing levels | 4; None; 4/8/16 times | |
| parameterizable | Yes | |
| Step: None | Yes | |
| Step: low | Yes | |
| Step: Medium | Yes | |
| Step: High | Yes | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| Errors/accuracies | ||
| Linearity error (relative to input range), (+/-) | 0.01 % | |
| Temperature error (relative to input range), (+/-) | 0.005 %/K | |
| Crosstalk between the inputs, min. | -70 dB | |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.03 % | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.1 %; 0.3 % when SFU OFF | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.05 %; 0.2 % when SFU OFF | |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||
