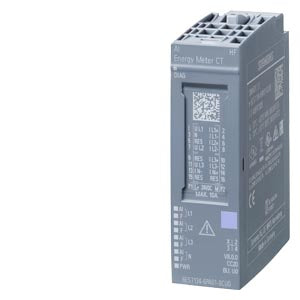

SIMATIC ET200SP AI Energy Meter CT HF
| General information | ||
| Product type designation | AI Energy Meter CT HF | |
| Firmware version | V8.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type U0 | |
| Color code for module-specific color identification plate | CC20 | |
| Supported power supply systems | TT, TN, IT | |
| Product function | ||
| Voltage measurement | Yes | |
| without voltage transformer | Yes | |
| with voltage transformer | Yes | |
| Current measurement | Yes; Max. 4 | |
| without current transformer | No | |
| with current transformer | Yes; 1 A or 5 A current transformer | |
| With Rogowski coil | No | |
| With current-voltage-converter | No | |
| Energy measurement | Yes | |
| Frequency measurement | Yes | |
| Power measurement | Yes | |
| Active power measurement | Yes | |
| Reactive power measurement | Yes | |
| Power factor measurement | Yes | |
| Active factor measurement | Yes | |
| Reactive power compensation | Yes | |
| Line analysis | Yes | |
| Monitoring of instantaneous and half-wave values | Yes | |
| THD measurement for current and voltage | Yes | |
| Harmonics for current and voltage | Yes | |
| Voltage dip (DIP) | Yes | |
| Voltage swell | Yes | |
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V16 or higher with HSP | |
| STEP 7 configurable/integrated from version | V5.5 SP3 or higher | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | V2.3 | |
| Operating mode | ||
| Switching between operating modes in RUN | Yes; For module version 32 I/20 Q, it is possible to dynamically switch between 25 user data variants, 23 of which are pre-defined and 2 of which can be defined by the specific user | |
| Cyclic measured value access | Yes | |
| Acyclic measured value access | Yes | |
| Fixed measured value sets | Yes | |
| Freely definable measured value sets | Yes; For cyclic and acyclic measured value access | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Installation type/mounting | ||
| Mounting position | any | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption (rated value) | 12.5 mA | |
| Current consumption, max. | 17 mA | |
| Power loss | ||
| Power loss, typ. | 1.4 W; 4x 6 A input current, 3x 230 V AC | |
| Address area | ||
| Address space per module | ||
| Inputs | 256 byte | |
| Outputs | 20 byte | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Selection of BaseUnit for connection variants | ||
| 2-wire connection | BU type U0 | |
| Time of day | ||
| Operating hours counter | ||
| present | Yes | |
| Analog inputs | ||
| Cycle time (all channels), typ. | 50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data) | |
| Cable length | ||
| shielded, max. | 200 m | |
| unshielded, max. | 200 m | |
| Analog value generation for the inputs | ||
| Sampling frequency, max. | 2 048 kHz | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes | |
| Limit value alarm | Yes | |
| Hardware interrupt | Yes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value) | |
| Diagnoses | ||
| Line quality | Yes | |
| Supply voltage | Yes | |
| Hardware interrupt lost | Yes | |
| Parameter assignment error | Yes | |
| Module fault | Yes | |
| Channel not available | Yes | |
| Overflow/underflow | Yes | |
| Overload current | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red Fn LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Integrated Functions | ||
| Measuring functions | ||
| Measuring procedure for voltage measurement | TRMS | |
| Measuring procedure for current measurement | TRMS | |
| Type of measured value acquisition | seamless | |
| Curve shape of voltage | Sinusoidal or distorted | |
| Buffering of measured variables | Yes | |
| Parameter length | 128 byte | |
| Bandwidth of measured value acquisition | 3.2 kHz; Harmonics: 63 / 50 Hz, 52 / 60 Hz | |
| Measuring range | ||
| Frequency measurement, min. | 40 Hz | |
| Frequency measurement, max. | 70 Hz | |
| Measuring inputs for voltage | ||
| Measurable line voltage between phase and neutral conductor | 277 V | |
| Measurable line voltage between the line conductors | 480 V | |
| Measurable line voltage between phase and neutral conductor, min. | 3 V | |
| Measurable line voltage between phase and neutral conductor, max. | 300 V | |
| Measurable line voltage between the line conductors, min. | 6 V | |
| Measurable line voltage between the line conductors, max. | 519 V | |
| Internal resistance line conductor and neutral conductor | 1.5 M¦ | |
| Power consumption per phase | 60 mW; 300 V AC | |
| Impulse voltage resistance 1,2/50µs | 2.5 kV | |
| Measurement category for voltage measurement in accordance with IEC 61010-2-030 | ||
