Siemens - 6ES7134-6PA20-0BD0
Siemens - 6ES7134-6PA20-0BD0
Regular price
€159,03 EUR
Regular price
Sale price
€159,03 EUR
Couldn't load pickup availability
Low stock: 2 left

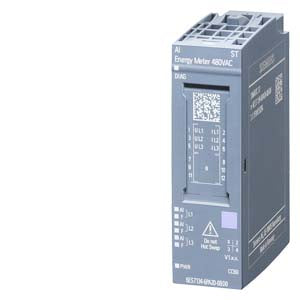

SIMATIC ET200SP AI Energy Meter 480VAC ST
| General information | ||
| Product type designation | AI Energy Meter 480VAC ST | |
| Firmware version | V4.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type D0 | |
| Supported power supply systems | TT, TN | |
| Product function | ||
| Voltage measurement | Yes | |
| without voltage transformer | Yes | |
| with voltage transformer | Yes | |
| Current measurement | Yes | |
| without current transformer | No | |
| with current transformer | Yes | |
| With Rogowski coil | No | |
| With current-voltage-converter | No | |
| Energy measurement | Yes | |
| Frequency measurement | Yes | |
| Power measurement | Yes | |
| Active power measurement | Yes | |
| Reactive power measurement | Yes | |
| Power factor measurement | Yes | |
| Active factor measurement | No | |
| Reactive power compensation | No | |
| Line analysis | No | |
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 | |
| STEP 7 configurable/integrated from version | V5.5 SP4 and higher | |
| PROFIBUS from GSD version/GSD revision | GSD Revision 5 | |
| PROFINET from GSD version/GSD revision | V2.3 | |
| Operating mode | ||
| Cyclic measured value access | Yes | |
| Acyclic measured value access | Yes | |
| Fixed measured value sets | Yes | |
| Freely definable measured value sets | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Installation type/mounting | ||
| Mounting position | any | |
| Supply voltage | ||
| Design of the power supply | Supply via voltage measurement channel L1 | |
| Rated value (AC) | AC 100 - 277 V | |
| permissible range, lower limit (AC) | 90 V | |
| permissible range, upper limit (AC) | 293 V | |
| Line frequency | ||
| permissible range, lower limit | 47 Hz | |
| permissible range, upper limit | 63 Hz | |
| Power loss | ||
| Power loss, typ. | 0.6 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 256 byte | |
| Outputs | 12 byte | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Selection of BaseUnit for connection variants | ||
| 2-wire connection | BU type D0, BU20-P12+A0+0B | |
| Time of day | ||
| Operating hours counter | ||
| present | Yes | |
| Analog inputs | ||
| Cycle time (all channels), typ. | 50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data) | |
| Cable length | ||
| unshielded, max. | 200 m | |
| Analog value generation for the inputs | ||
| Measurement principle | Sigma Delta | |
| Sampling frequency, max. | 1 024 kHz | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes | |
| Limit value alarm | Yes | |
| Hardware interrupt | Yes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value) | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red Fn LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Integrated Functions | ||
| Measuring functions | ||
| Measuring procedure for voltage measurement | TRMS | |
| Measuring procedure for current measurement | TRMS | |
| Type of measured value acquisition | seamless | |
| Curve shape of voltage | Sinusoidal or distorted | |
| Buffering of measured variables | Yes | |
| Parameter length | 74 byte | |
| Bandwidth of measured value acquisition | 2 kHz; Harmonics: 39 / 50 Hz, 32 / 60 Hz | |
| Measuring range | ||
| Frequency measurement, min. | 45 Hz | |
| Frequency measurement, max. | 65 Hz | |
| Measuring inputs for voltage | ||
| Measurable line voltage between phase and neutral conductor | 277 V | |
| Measurable line voltage between the line conductors | 480 V | |
| Measurable line voltage between phase and neutral conductor, min. | 90 V | |
| Measurable line voltage between phase and neutral conductor, max. | 293 V | |
| Measurable line voltage between the line conductors, min. | 155 V | |
| Measurable line voltage between the line conductors, max. | 508 V | |
| Internal resistance line conductor and neutral conductor | 3.4 M¦ | |
| Power consumption per phase | 20 mW | |
| Impulse voltage resistance 1,2/50µs | 1 kV | |
| Measurement category for voltage measurement in accordance with IEC 61010-2-030 | CAT II; CAT III in case of guaranteed protection level of 1.5 kV | |
| Measuring inputs for current | ||
| measurable relative current (AC), min. | 1 %; Relative to the secondary rated current 5 A | |
| measurable relative current (AC), max. | 100 %; Relative to the secondary rated current 5 A | |
| Continuous current with AC, maximum permissible | 5 A | |
| Apparent power consumption per phase for measuring range 5 A | 0.6 VA | |
| Rated value short-time withstand current restricted to 1 s | 100 A | |
| Input resistance measuring range 0 to 5 A | 25 m¦; At the terminal | |
| Surge strength | 10 A; for 1 minute | |
| Zero point suppression | Parameterizable: 2 ... 250 mA, default 50 mA | |
| Accuracy class according to IEC 61557-12 | ||
| Measured variable voltage | 0,2 | |
| Measured variable current | 0,2 | |
| Measured variable apparent power | 0.5 | |
| Measured variable active power | 0.5 | |
| Measured varia | ||
