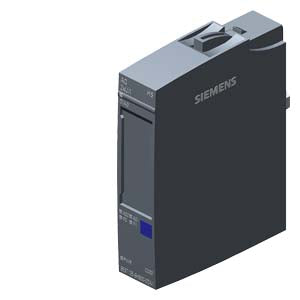

Siemens - 6ES7135-6HB00-0DA1

Siemens - 6ES7135-6HB00-0DA1

Regular price €156,85 EUR
Regular price Sale price €156,85 EUR
Sale Sold out

19 in stock

SIMATIC ET 200SP AQ 2xU/I HS

General information
Product type designation AQ 2xU/I HS
HW functional status From FS06
usable BaseUnits BU type A0, A1
Color code for module-specific color identification plate CC00
Product function
I&M data Yes; I&M0 to I&M3
Isochronous mode Yes; 125 µs
Engineering with
STEP 7 TIA Portal configurable/integrated from version V13 SP1
STEP 7 configurable/integrated from version V5.5 SP3 / -
PROFIBUS from GSD version/GSD revision GSD Revision 5
PROFINET from GSD version/GSD revision GSDML V2.3
Operating mode
Oversampling Yes; 2 channels per module
MSO No
CiR - Configuration in RUN
Reparameterization possible in RUN Yes
Calibration possible in RUN No
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption (rated value) 45 mA; without load
Current consumption, max. 90 mA; 2 channels current output 20 mA
Power loss
Power loss, typ. 0.9 W
Address area
Address space per module
Address space per module, max. 4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)
Hardware configuration
Automatic encoding
Mechanical coding element Yes
Type of mechanical coding element Type A
Analog outputs
Number of analog outputs 2
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 45 mA
Cycle time (all channels), min. 125 µs
Analog output with oversampling Yes
Values per cycle, max. 16
Resolution, min. 45 µs; (2 channels), 35 µs (1 channel)
Output ranges, voltage
0 to 10 V Yes; 15 bit
1 V to 5 V Yes; 13 bit
-5 V to +5 V Yes; 15 bit incl. sign
-10 V to +10 V Yes; 16 bit incl. sign
Output ranges, current
0 to 20 mA Yes; 15 bit
-20 mA to +20 mA Yes; 16 bit incl. sign
4 mA to 20 mA Yes; 14 bit
Connection of actuators
for voltage output two-wire connection Yes
for voltage output four-wire connection Yes
for current output two-wire connection Yes
Load impedance (in rated range of output)
with voltage outputs, min. 2 k¦
with voltage outputs, capacitive load, max. 1 µF
with current outputs, max. 500 ¦
with current outputs, inductive load, max. 1 mH
Destruction limits against externally applied voltages and currents
Voltages at the outputs 30 V
Cable length
shielded, max. 1 000 m; 200 m for voltage output
Analog value generation for the outputs
Integration and conversion time/resolution per channel
Resolution with overrange (bit including sign), max. 16 bit
Settling time
for resistive load 0.05 ms
for capacitive load 0.05 ms; Max. 47 nF and 20 m cable length
for inductive load 0.05 ms
Errors/accuracies
Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) 0.02 %
Linearity error (relative to output range), (+/-) 0.03 %
Temperature error (relative to output range), (+/-) 0.003 %/K
Crosstalk between the outputs, max. -50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.03 %
Operational error limit in overall temperature range
Voltage, relative to output range, (+/-) 0.2 %
Current, relative to output range, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to output range, (+/-) 0.1 %
Current, relative to output range, (+/-) 0.1 %
Isochronous mode
Execution and activation time (TCO), min. 70 µs
Bus cycle time (TDP), min. 125 µs
Interrupts/diagnostics/status information
Diagnostics function Yes
Substitute values connectable Yes
Alarms
Diagnostic alarm Yes
Diagnoses
Monitoring the supply voltage Yes
Wire-break Yes; channel-by-channel, only for output type "current"
Short-circuit Yes; channel-by-channel, only for output type "voltage"
Group error Yes
Overflow/underflow Yes
Diagnostics indication LED
Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Channel status display Yes; green LED
for channel diagnostics Yes; red LED
for module diagnostics Yes; green/red DIAG LED
Potential separation
Potential separation channels
between the channels No
between the channels and backplane bus Yes
between the channels and the power supply of the electronics Yes
Isolation
Isolation tested with 707 V DC (type test)
Ambient conditions
Ambient temperature during operation
horizontal installation, min. -30 °C; < 0 °C as of FS06
horizontal installation, max. 60 °C
vertical installation, min. -30 °C; < 0 °C as of FS06
vertical installation, max. 50 °C
Altitude during operation relating to sea level
Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Dimensions
Width 15 mm
