Siemens - 6ES7135-6HD00-0BA1
Siemens - 6ES7135-6HD00-0BA1
Regular price
€138,35 EUR
Regular price
Sale price
€138,35 EUR
Couldn't load pickup availability
68 in stock

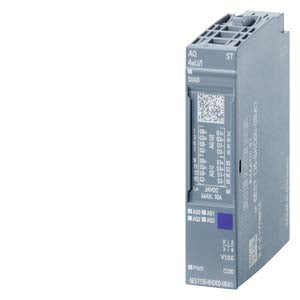

SIMATIC ET 200SP AQ 4xU/I ST
| General information | ||
| Product type designation | AQ 4xU/I ST | |
| HW functional status | from FS21 | |
| Firmware version | V1.1.3 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type A0, A1 | |
| Color code for module-specific color identification plate | CC00 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Output range scalable | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V11 SP2 / V13 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PCS 7 configurable/integrated from version | V8.1 SP1 | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| Oversampling | No | |
| MSO | No | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | No | |
| Calibration possible in RUN | No | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 150 mA | |
| Power loss | ||
| Power loss, typ. | 1.5 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 8 byte; + 1 byte for QI information | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | Type A | |
| Analog outputs | ||
| Number of analog outputs | 4 | |
| Voltage output, short-circuit current, max. | 45 mA | |
| Cycle time (all channels), min. | 5 ms | |
| Analog output with oversampling | No | |
| Output ranges, voltage | ||
| 0 to 10 V | Yes; 15 bit | |
| 1 V to 5 V | Yes; 13 bit | |
| -5 V to +5 V | Yes; 15 bit incl. sign | |
| -10 V to +10 V | Yes; 16 bit incl. sign | |
| Output ranges, current | ||
| 0 to 20 mA | Yes; 15 bit | |
| -20 mA to +20 mA | Yes; 16 bit incl. sign | |
| 4 mA to 20 mA | Yes; 14 bit | |
| Connection of actuators | ||
| for voltage output two-wire connection | Yes | |
| for voltage output four-wire connection | Yes | |
| for current output two-wire connection | Yes | |
| Load impedance (in rated range of output) | ||
| with voltage outputs, min. | 2 k¦ | |
| with voltage outputs, capacitive load, max. | 1 µF | |
| with current outputs, max. | 500 ¦ | |
| with current outputs, inductive load, max. | 1 mH | |
| Destruction limits against externally applied voltages and currents | ||
| Voltages at the outputs | 30 V | |
| Cable length | ||
| shielded, max. | 1 000 m; 200 m for voltage output | |
| Analog value generation for the outputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Settling time | ||
| for resistive load | 0.1 ms | |
| for capacitive load | 1 ms | |
| for inductive load | 0.5 ms | |
| Errors/accuracies | ||
| Linearity error (relative to output range), (+/-) | 0.03 % | |
| Temperature error (relative to output range), (+/-) | 0.005 %/K | |
| Crosstalk between the outputs, min. | -50 dB | |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to output range, (+/-) | 0.5 % | |
| Current, relative to output range, (+/-) | 0.5 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to output range, (+/-) | 0.3 % | |
| Current, relative to output range, (+/-) | 0.3 % | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | Yes; module-by-module, only for output type "current" | |
| Short-circuit | Yes; module-by-module, only for output type "voltage" | |
| Group error | Yes | |
| Overflow/underflow | Yes; Module-wise | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | No | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C; < 0 °C as of FS07 | |
| horizontal installation, max. | 60 °C; Observe derating | |
| vertical installation, min. | -30 °C; < 0 °C as of FS07 | |
| vertical installation, max. | 50 °C; Observe derating | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 31 g | |
| Approvals / Certificates | ||
