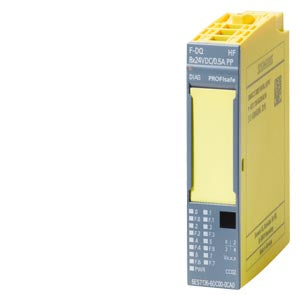

SIMATIC DP F-DQ 8x24VDC/0.5A PP HF
| General information | ||
| Product type designation | F-DQ 8x24 V DC/0.5 A PP HF | |
| Firmware version | ||
| FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC02 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 SP1 with HSP 202 | |
| STEP 7 configurable/integrated from version | V5.5 SP4 HF5 | |
| PROFINET from GSD version/GSD revision | V2.31 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| power supply according to NEC Class 2 required | No | |
| Input current | ||
| Current consumption (rated value) | 75 mA; without load | |
| Current consumption, max. | 21 mA; From the backplane bus | |
| output voltage / header | ||
| Rated value (DC) | 24 V | |
| Power | ||
| Power consumption from the backplane bus | 70 mW | |
| Power loss | ||
| Power loss, typ. | 3 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA | |
| Outputs | 6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Electronic coding element type F | Yes | |
| Digital outputs | ||
| Type of digital output | Transistor | |
| Number of digital outputs | 8 | |
| Digital outputs, parameterizable | Yes | |
| Short-circuit protection | Yes | |
| Response threshold, typ. | Min. 0.7 A | |
| Open-circuit detection | No | |
| Limitation of inductive shutdown voltage to | Typ. -39 V | |
| Controlling a digital input | Yes; digital output, according to IEC 61131-2, type 0.5 | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 0.5 A | |
| on lamp load, max. | 2 W | |
| Load resistance range | ||
| lower limit | 48 ¦ | |
| upper limit | 12 000 ¦ | |
| Output voltage | ||
| for signal "1", min. | 24 V; L+ (-0.5 V) | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "0" residual current, max. | 0.5 mA | |
| Switching frequency | ||
| with resistive load, max. | 30 Hz; Symmetrical | |
| with inductive load, max. | 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical | |
| with capacitive load, max. | 2 Hz; Symmetrical | |
| on lamp load, max. | 10 Hz; Symmetrical | |
| Total current of the outputs | ||
| Current per channel, max. | 0.5 A; note derating data in the manual | |
| Current per module, max. | 3 A; note derating data in the manual | |
| Total current of the outputs (per module) | ||
| horizontal installation | ||
| up to 40 °C, max. | 3 A | |
| up to 50 °C, max. | 2.5 A | |
| up to 60 °C, max. | 2 A | |
| vertical installation | ||
| up to 50 °C, max. | 2 A | |
| Cable length | ||
| shielded, max. | 100 m | |
| unshielded, max. | 100 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual | |
| Substitute values connectable | No | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Hardware interrupt | No | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 88.3 kg | |
| global warming potential, (during production) [CO2 eq] | 13.1 kg | |
| global warming potential, (during operation) [CO2 eq] | 76.6 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -1.37 kg | |
| Highest safety class achievable in safety mode | ||
| Performance level according to ISO 13849-1 | PLe | |
| Category according to ISO 13849-1 | Cat. 4 | |
| SIL acc. to IEC 61508 | SIL 3 | |
| Probability of failure (for service life of 20 years and repair time of 100 hours) | ||
| Low demand mode: PFDavg in accordance with SIL3 | < 6.00E-05 | |
| High demand/continuous mode: PFH in accordance with SIL3 | < 2.00E-09 1/h | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | 0 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | 0 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 48 g | |
