Siemens - 6ES7136-6PA00-0BC0
Siemens - 6ES7136-6PA00-0BC0
Regular price
€179,07 EUR
Regular price
Sale price
€179,07 EUR
Couldn't load pickup availability
77 in stock

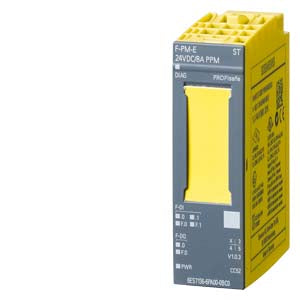

SIMATIC DP F-PM-E 24VDC/8A PPM
| General information | ||
| Product type designation | F-PM-E 24 V DC/8 A PPM ST | |
| usable BaseUnits | BU type C0 | |
| Color code for module-specific color identification plate | CC52 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V12 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFINET from GSD version/GSD revision | V2.31 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 75 mA; without load | |
| Current consumption, max. | 21 mA; From the backplane bus | |
| output voltage / header | ||
| Rated value (DC) | 24 V | |
| Encoder supply | ||
| Number of outputs | 2 | |
| Short-circuit protection | Yes; Electronic (response threshold 0.7 A to 2.1 A) | |
| Output current | ||
| up to 60 °C, max. | 0.3 A | |
| 24 V encoder supply | ||
| 24 V | Yes; min. L+ (-1.5 V) | |
| Short-circuit protection | Yes | |
| Output current, max. | 600 mA; Total current of all encoders | |
| Power | ||
| Power consumption from the backplane bus | 70 mW | |
| Power loss | ||
| Power loss, typ. | 5 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 7 byte | |
| Outputs | 5 byte | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Electronic coding element type F | Yes | |
| Digital inputs | ||
| Number of digital inputs | 2 | |
| Source/sink input | Yes; P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |
| Input voltage | ||
| Type of input voltage | DC | |
| Rated value (DC) | 24 V | |
| for signal "0" | -30 to +5 V | |
| for signal "1" | +15 to +30 V | |
| Input current | ||
| for signal "1", typ. | 3.7 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes | |
| at "0" to "1", min. | 0.4 ms | |
| at "0" to "1", max. | 20 ms | |
| at "1" to "0", min. | 0.4 ms | |
| at "1" to "0", max. | 20 ms | |
| for technological functions | ||
| parameterizable | No | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 500 m | |
| Digital outputs | ||
| Number of digital outputs | 1 | |
| Short-circuit protection | Yes | |
| Response threshold, typ. | > 14.8 A | |
| Open-circuit detection | Yes | |
| Response threshold, typ. | 8 mA | |
| Overload protection | Yes | |
| Response threshold, typ. | 8.8 A | |
| Limitation of inductive shutdown voltage to | Max. -1.5 V | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 8 A | |
| on lamp load, max. | 100 W | |
| Load resistance range | ||
| lower limit | 3 ¦ | |
| upper limit | 2 000 ¦ | |
| Output voltage | ||
| for signal "1", min. | 24 V; L+ (-0.5 V) | |
| Output current | ||
| for signal "1" rated value | 8 A | |
| for signal "0" residual current, max. | 1.5 mA; PP-switching: max. 1.5 mA; PM-switching: max. 1 mA | |
| Switching frequency | ||
| with resistive load, max. | 10 Hz; Symmetrical | |
| with inductive load, max. | 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical | |
| on lamp load, max. | 4 Hz; Symmetrical | |
| Total current of the outputs | ||
| Current per channel, max. | 8 A; note derating data in the manual | |
| Current per module, max. | 8 A; note derating data in the manual | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 500 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual | |
| Substitute values connectable | No | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Hardware interrupt | No | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety functions | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 88.3 kg | |
| global warming potential, (during production) [CO2 eq] | 13.1 kg | |
| global warming potential, (during operation) [CO2 eq] | 76.6 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -1.37 kg | |
| Highest safety class achievable in safety mode | ||
| Performance level according to ISO 13849-1 | ||
