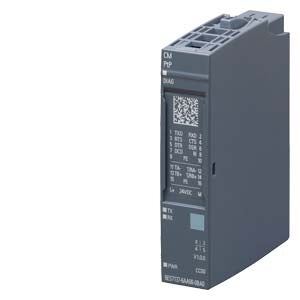

SIMATIC ET 200SP CM PTP RS232 RS485/422 (10er Pack)
| General information | ||
| Product type designation | CM PtP | |
| Firmware version | ||
| FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V17 or higher | |
| STEP 7 configurable/integrated from version | via GSD as of V5.6 HF4 | |
| PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 | |
| PROFINET from GSD version/GSD revision | GSDML V2.34 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption (rated value) | 31 mA | |
| Current consumption, max. | 35 mA | |
| Power loss | ||
| Power loss, typ. | 0.7 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 8 byte; performance mode: 32 byte | |
| Outputs | 0 byte; performance mode: 32 byte | |
| 1. Interface | ||
| Interface types | ||
| RS 485 | Yes | |
| RS 422 | Yes | |
| RS 232 | Yes | |
| Design of the connection | Push-in terminal | |
| Interface types | ||
| RS 232 | ||
| Transmission rate, max. | 115.2 kbit/s | |
| Cable length, max. | 15 m | |
| RS 232 auxiliary signals | RTS, CTS, DTR, DSR, RI, DCD | |
| RS 485 | ||
| Transmission rate, max. | 250 kbit/s | |
| Cable length, max. | 1 200 m; 100 to 1200 m, depending on transmission speed | |
| RS 422 | ||
| Transmission rate, max. | 115.2 kbit/s | |
| Cable length, max. | 1 200 m | |
| 4-wire full duplex connection | Yes | |
| 4-wire multipoint connection | Yes | |
| Protocols | ||
| Integrated protocols | ||
| Freeport | ||
| Telegram length, max. | 2 kbyte; performance mode: receive data max. 24 byte and send data max. 30 byte | |
| Bits per character | 7 or 8 | |
| Number of stop bits | 1 or 2 bit | |
| Parity | None, even, odd, always 1, always 0, any | |
| 3964 (R) | ||
| Telegram length, max. | 2 kbyte; performance mode: receive data max. 24 byte and send data max. 30 byte | |
| Bits per character | 7 or 8 | |
| Number of stop bits | 1 or 2 bit | |
| Parity | None, even, odd, always 1, always 0, any | |
| Modbus RTU master | ||
| Address area | 1 to 247, extended 1 to 65535 | |
| max. number of devices | 32 | |
| protocols / Modbus RTU device / header | ||
| Address area | 1 to 247, extended 1 to 65535 | |
| Telegram buffer | ||
| Buffer memory for telegrams | 4 kbyte | |
| Number of telegrams which can be buffered | 255 | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Hardware interrupt | No | |
| Diagnoses | ||
| Wire-break | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Receive RxD | Yes; green LED | |
| Transmit TxD | Yes; green LED | |
| Potential separation | ||
| between backplane bus and interface | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 25.2 kg | |
| global warming potential, (during production) [CO2 eq] | 6.15 kg | |
| global warming potential, (during operation) [CO2 eq] | 19.4 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m | |
| Decentralized operation | ||
| to SIMATIC S7-300 | Yes | |
| to SIMATIC S7-400 | Yes | |
| to SIMATIC S7-1200 | Yes | |
| to SIMATIC S7-1500 | Yes | |
| to standard PROFINET controller | Yes | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 30 g | |
| Approvals / Certificates | ||
