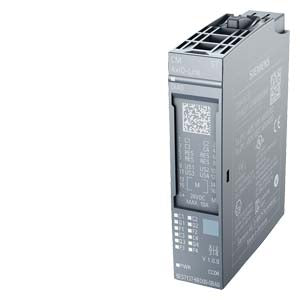

SIMATIC ET 200SP CM 4xIO-Link ST
| General information | ||
| Product type designation | CM 4 x IO-Link ST | |
| HW functional status | FS20 | |
| Firmware version | V2.2.2 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC04 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher | |
| STEP 7 configurable/integrated from version | STEP 7 V5.5 or higher | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Operating mode | ||
| IO-Link | Yes | |
| DI | Yes | |
| DQ | Yes; max. 100 mA per channel | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| power supply according to NEC Class 2 required | No | |
| Input current | ||
| Current consumption, max. | 45 mA; without load | |
| Encoder supply | ||
| Number of outputs | 4 | |
| Output current | ||
| Rated value | 700 mA; Per channel | |
| 24 V encoder supply | ||
| Short-circuit protection | Yes | |
| Output current, max. | 2.1 A | |
| Power loss | ||
| Power loss, typ. | 1 W | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Electronic coding element type H | Yes | |
| Digital outputs | ||
| Cable length | ||
| unshielded, max. | 20 m; Also applies for shielded cables | |
| IO-Link | ||
| Number of ports | 4 | |
| of which simultaneously controllable | 4 | |
| IO-Link protocol 1.0 | Yes | |
| IO-Link protocol 1.1 | Yes | |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3) | |
| Cycle time, min. | 2 ms; dynamic, depending on user data length | |
| Size of process data, input per port | 32 byte; max. | |
| Size of process data, input per module | 144 byte; max. | |
| Size of process data, output per port | 32 byte; max. | |
| Size of process data, output per module | 128 byte; max. | |
| Memory size for device parameter | 2 kbyte; for each port | |
| Master backup | Yes | |
| Configuration without S7-PCT | Yes | |
| Cable length unshielded, max. | 20 m | |
| Time Based IO | ||
| TIO IO-Link IN | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 | |
| TIO IO-Link OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 | |
| TIO IO-Link IN/OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 | |
| Connection of IO-Link devices | ||
| Port type A | Yes | |
| Port type B | Yes; 24 V DC via external terminal | |
| via three-wire connection | Yes | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes; The port diagnosis is available in the IO-Link mode only. | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | Yes | |
| Short-circuit | Yes | |
| Group error | Yes | |
| Diagnostics indication LED | ||
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Channel status display | Yes; one green LED for channel status Qn (SIO mode) and port status Cn (IO-Link mode) per channel | |
| for channel diagnostics | Yes; red Fn LED | |
| for module diagnostics | Yes; green/red DIAG LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 25.2 kg | |
| global warming potential, (during production) [CO2 eq] | 6.15 kg | |
| global warming potential, (during operation) [CO2 eq] | 19.4 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| Dimensions | ||
| Width | 13 mm | |
| Height | 73 mm | |
| Depth | 58 mm | |
| Weights | ||
| Weight, approx. | 30 g | |
| Approvals / Certificates | ||
