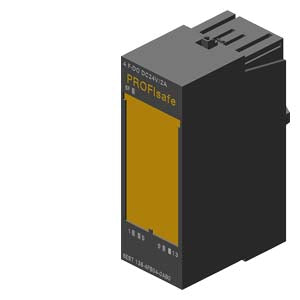

SIMATIC DP 4 F-DO DC 24V/2A PROFIsafe
| Supply voltage | ||
| Load voltage L+ | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | No | |
| Input current | ||
| From load voltage L+ (no load), typ. | 100 mA | |
| from backplane bus 3.3 V DC, max. | 28 mA | |
| Power loss | ||
| Power loss, typ. | 3.5 W | |
| Digital outputs | ||
| Type of digital output | Transistor | |
| Number of digital outputs | 4 | |
| Short-circuit protection | Yes | |
| Limitation of inductive shutdown voltage to | Typ. (2L+) -47 V | |
| Controlling a digital input | No | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 10 W | |
| Load resistance range | ||
| lower limit | 12 ¦ | |
| upper limit | 1 k¦ | |
| Output voltage | ||
| for signal "1", min. | L+ (-2,0 V), current sourcing switch: L+ (-1,5 V), voltage drop on current sinking switch: max. 0.5 V | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| for signal "1" permissible range, min. | 20 mA | |
| for signal "1" permissible range, max. | 2.4 A | |
| for signal "0" residual current, max. | 0.5 mA; Current-sourcing and current-sinking switches | |
| Parallel switching of two outputs | ||
| for uprating | No | |
| for redundant control of a load | No | |
| Switching frequency | ||
| with resistive load, max. | 30 Hz; Symmetrical | |
| with inductive load, max. | 0.1 Hz; Symmetrical | |
| on lamp load, max. | 10 Hz; Symmetrical | |
| Total current of the outputs | ||
| Current per module, max. | 6 A | |
| Total current of the outputs (per group) | ||
| horizontal installation | ||
| up to 40 °C, max. | 6 A | |
| up to 55 °C, max. | 5 A | |
| up to 60 °C, max. | 4 A | |
| vertical installation | ||
| up to 40 °C, max. | 4 A | |
| Cable length | ||
| shielded, max. | 500 m | |
| unshielded, max. | 500 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Diagnoses | ||
| Wire-break | Yes | |
| Short-circuit | Yes | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Status indicator digital output (green) | Yes | |
| Potential separation | ||
| Potential separation digital outputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Between the channels and load voltage L+ | No | |
| Standards, approvals, certificates | ||
| Highest safety class achievable in safety mode | ||
| acc. to EN 954 | 4 | |
| Performance level according to ISO 13849-1 | PLe | |
| SIL acc. to IEC 61508 | SIL 3 | |
| Dimensions | ||
| Width | 30 mm | |
| Height | 81 mm | |
| Depth | 52 mm | |
| Weights | ||
| Weight, approx. | 85 g | |
| Approvals / Certificates | ||
