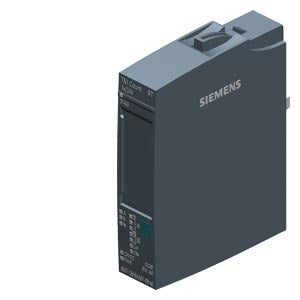

SIMATIC ET 200SP TM Count 1x 24V
| General information | ||
| Product type designation | TM Count 1x24V | |
| Firmware version | V2.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type A0 | |
| Color code for module-specific color identification plate | CC00 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 SP1 or higher | |
| STEP 7 configurable/integrated from version | V5.6 and higher | |
| PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher | |
| PROFINET from GSD version/GSD revision | GSDML V2.34 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Load voltage L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 60 mA; without load | |
| Encoder supply | ||
| Number of outputs | 1 | |
| 24 V encoder supply | ||
| 24 V | Yes; L+ (-0.8 V) | |
| Short-circuit protection | Yes; electronic/thermal | |
| Output current, max. | 300 mA | |
| Power loss | ||
| Power loss, typ. | 1 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 16 byte; 4 bytes in Fast mode | |
| Outputs | 12 byte; 4 bytes for Motion Control, 0 bytes for Fast mode | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type B | |
| Digital inputs | ||
| Number of digital inputs | 3 | |
| Digital inputs, parameterizable | Yes | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Digital input functions, parameterizable | ||
| Gate start/stop | Yes | |
| Capture | Yes | |
| Synchronization | Yes | |
| Freely usable digital input | Yes | |
| Probe | Yes | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -5 ... +5 V | |
| for signal "1" | +11 to +30V | |
| permissible voltage at input, min. | -30 V; -5 V continuous, -30 V brief reverse polarity protection | |
| permissible voltage at input, max. | 30 V | |
| Input current | ||
| for signal "1", typ. | 2.5 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms | |
| for technological functions | ||
| parameterizable | Yes | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Digital outputs | ||
| Type of digital output | Transistor | |
| Number of digital outputs | 2 | |
| Digital outputs, parameterizable | Yes | |
| Short-circuit protection | Yes; electronic/thermal | |
| Response threshold, typ. | 1 A | |
| Limitation of inductive shutdown voltage to | L+ (-53 V) | |
| Controlling a digital input | Yes | |
| Digital output functions, parameterizable | ||
| Switching tripped by comparison values | Yes | |
| Freely usable digital output | Yes | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 0.5 A; Per digital output | |
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 48 ¦ | |
| upper limit | 12 k¦ | |
| Output voltage | ||
| for signal "1", min. | 23.2 V; L+ (-0.8 V) | |
| Output current | ||
| for signal "1" rated value | 0.5 A; Per digital output | |
| for signal "1" permissible range, max. | 0.6 A; Per digital output | |
| for signal "1" minimum load current | 2 mA | |
| for signal "0" residual current, max. | 0.5 mA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 50 µs | |
| "1" to "0", max. | 50 µs | |
| Switching frequency | ||
| with resistive load, max. | 10 kHz | |
| with inductive load, max. | 0.5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs | ||
| Current per module, max. | 1 A | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Encoder signals, incremental encoder (asymmetrical) | ||
| Input voltage | 24 V | |
| Input frequency, max. | 200 kHz | |
| Counting frequency, max. | 800 kHz; with quadruple evaluation | |
| Cable length, shielded, max. | 600 m; depending on input frequency, encoder and cable quality; max. 50 m at 200 kHz | |
| Signal filter, parameterizable | Yes | |
| Incremental encoder with A/B tracks, 90° phase offset | Yes | |
| Incremental encoder with A/B tracks, 90° phase offset and zero track | Yes | |
| pulse encoder | Yes | |
| pulse encoder with direction | Yes | |
| pulse encoder with one impulse signal per count direction | Yes | |
| Interface types | ||
| Source/sink input | Yes | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Interfaces | ||
| Number of RS 485 interfaces | 0 | |
| Interrupts/diagnostics/status information | ||
