Siemens - 6ES7138-6DB00-0BB1
Siemens - 6ES7138-6DB00-0BB1
Regular price
€213,81 EUR
Regular price
Sale price
€213,81 EUR
Couldn't load pickup availability
Low stock: 4 left

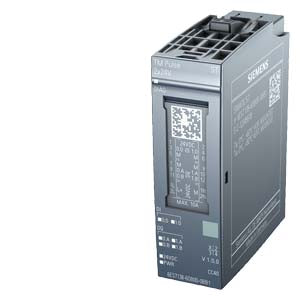

SIMATIC ET 200SP TM Pulse 2x 24V
| General information | ||
| Product type designation | TM Pulse 2x24 V | |
| HW functional status | From FS03 | |
| Firmware version | V1.0 | |
| FW update possible | Yes | |
| usable BaseUnits | BU type B1 | |
| Color code for module-specific color identification plate | CC40 | |
| Product function | ||
| I&M data | Yes; I&M 0 | |
| Isochronous mode | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 + HSP | |
| STEP 7 configurable/integrated from version | V5.5 SP4 and higher | |
| PROFIBUS from GSD version/GSD revision | GSD Revision 5 | |
| PROFINET from GSD version/GSD revision | GSDML V2.31 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Load voltage L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Short-circuit protection | Yes | |
| Reverse polarity protection | Yes; against destruction | |
| Input current | ||
| Current consumption, max. | 70 mA; without load | |
| Encoder supply | ||
| Number of outputs | 2; A common 24V encoder supply for both channels | |
| 24 V encoder supply | ||
| 24 V | Yes; L+ (-0.8 V) | |
| Short-circuit protection | Yes; per module, electronic | |
| Output current, max. | 300 mA | |
| Power loss | ||
| Power loss, typ. | 1.7 W | |
| Address area | ||
| Address space per module | ||
| Inputs | 16 byte; 8 per channel | |
| Outputs | 24 byte; 12 per channel | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Mechanical coding element | Yes | |
| Type of mechanical coding element | type C | |
| Digital inputs | ||
| Number of digital inputs | 2; 1 per channel | |
| Digital inputs, parameterizable | Yes | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Digital input functions, parameterizable | ||
| Freely usable digital input | Yes | |
| HW enable for digital output | Yes | |
| Input voltage | ||
| Type of input voltage | DC | |
| Rated value (DC) | 24 V | |
| for signal "0" | -5 ... +5 V | |
| for signal "1" | +11 to +30V | |
| permissible voltage at input, min. | -30 V; -5 V continuous, -30 V brief reverse polarity protection | |
| permissible voltage at input, max. | 30 V | |
| Input current | ||
| for signal "1", typ. | 2.5 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms | |
| Digital outputs | ||
| Type of digital output | P- and M-switching | |
| Number of digital outputs | 2; 1 per channel | |
| Current-sinking | Yes | |
| Current-sourcing | Yes | |
| Digital outputs, parameterizable | Yes | |
| Short-circuit protection | Yes; electronic/thermal | |
| Response threshold, typ. | 6.8 A with Standard output, 2 A with High Speed output | |
| Limitation of inductive shutdown voltage to | -0.8 V | |
| Controlling a digital input | Yes | |
| Accuracy of pulse duration | ±100 ppm ±0.5 µs with High Speed output, ±100 ppm ±9 µs with Standard output | |
| minimum pulse duration | 1.5 µs; With High Speed output, 10 µs with Standard output | |
| Digital output functions, parameterizable | ||
| Freely usable digital output | Yes | |
| PWM output | Yes | |
| Number, max. | 2; 1 per channel | |
| Cycle duration, parameterizable | Yes; Max. 85 s | |
| ON period, min. | 0 % | |
| ON period, max. | 100 % | |
| Resolution of the duty cycle | 0.0036 %; For S7 analog format, min. 20 ns | |
| Connection of a proportional valve | Yes | |
| Dithering | Yes | |
| Frequency adjustable | Yes | |
| Amplitude adjustable | Yes | |
| Current measurement | Yes | |
| Current control | Yes | |
| Connection of a DC motor | Yes | |
| ON-delay | Yes | |
| OFF-delay | Yes | |
| Frequency output | Yes | |
| Pulse train | Yes | |
| Pulse output | Yes | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 2 A | |
| on lamp load, max. | 10 W; 1 W with High Speed output | |
| Load resistance range | ||
| lower limit | 12 ¦; 240 ohm with High Speed output | |
| upper limit | 12 k¦ | |
| Output voltage | ||
| Type of output voltage | DC | |
| for signal "0", max. | 1 V | |
| for signal "1", min. | 23.2 V; L+ (-0.8 V) | |
| Output current | ||
| for signal "1" rated value | 2 A; 0.1 A with High Speed output, observe derating | |
| Output delay with resistive load | ||
| "0" to "1", typ. | 0 µs; With High Speed output, 4.5 µs with Standard output | |
| "0" to "1", max. | 0.8 µs; With High Speed output, 9 µs with Standard output | |
| "1" to "0", typ. | 0 µs; With High Speed output, 4.5 µs with Standard output | |
| "1" to "0", max. | 0.8 µs; With High Speed output, 9 µs with Standard output | |
| Parallel switching of two outputs | ||
| for uprating | Yes | |
| Switching frequency | ||
| with resistive load, max. | 100 kHz; With High Speed output, 10 kHz with standard output | |
| with inductive load, max. | 100 kHz; With High Speed output, 10 kHz with standard output | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs | ||
| Current per channel, max. | 2 A | |
| Current per group, max. | 4 A | |
| Current per module, max. | 4 A | |
| Interfaces | ||
