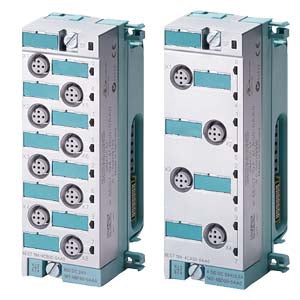

Siemens - 6ES7141-4BF00-0AB0
Siemens - 6ES7141-4BF00-0AB0
Regular price
€79,77 EUR
Regular price
Sale price
€79,77 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC DP 8 DI DC 24V HF
| General information | ||
| Product function | ||
| Isochronous mode | No | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction; load increasing | |
| Input current | ||
| from supply voltage 1L+, max. | 40 mA | |
| from backplane bus 3.3 V DC, max. | 20 mA | |
| Encoder supply | ||
| Number of outputs | 8 | |
| Short-circuit protection | Yes; per channel, electronic | |
| Output current | ||
| up to 55 °C, max. | 1 A | |
| Power loss | ||
| Power loss, typ. | 2.5 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 1 byte | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 1 | No | |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 55 °C, max. | 8 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 7 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes | |
| at "0" to "1", min. | 0.5 ms; 0.5 ms/ 3ms/ 15 ms/ 20 ms | |
| at "0" to "1", max. | 20 ms | |
| at "1" to "0", min. | 0.5 ms; 0.5 ms/ 3ms/ 15 ms/ 20 ms | |
| at "1" to "0", max. | 20 ms | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes; channel by channel, parameterizable | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Hardware interrupt | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Wire-break | Yes; Monitoring, I < 0.3 mA; per channel | |
| Short-circuit | Yes; channel by channel | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Status indicator digital input (green) | Yes; Per channel | |
| Potential separation | ||
| between backplane bus and all other circuit components | Yes | |
| Potential separation digital inputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 130 mm | |
| Depth | 35 mm; without terminal module | |
| Weights | ||
| Weight, approx. | 140 g | |
| Approvals / Certificates | ||
