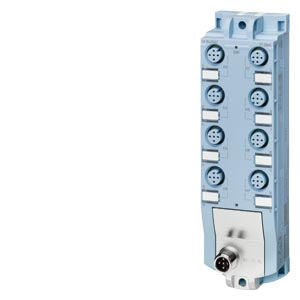

SIMATIC ET 200AL 16 DI DC 24V
| General information | ||
| Product type designation | IO-Link DI 16x24VDC | |
| HW functional status | FS01 | |
| Firmware version | V1.0.x | |
| Vendor identification (VendorID) | 42 | |
| Device identifier (DeviceID) | 229380 | |
| Engineering with | ||
| IODD file | Yes | |
| Supply voltage | ||
| Load voltage 1L+ | ||
| Rated value (DC) | 24 V; Supply from 1Us+ of the IO-Link master | |
| permissible range, lower limit (DC) | 18 V | |
| permissible range, upper limit (DC) | 30 V | |
| Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity | |
| Input current | ||
| Current consumption (rated value) | 20 mA; without load | |
| Encoder supply | ||
| Number of outputs | 8; Supply from 1Us+ of the IO-Link master | |
| 24 V encoder supply | ||
| Short-circuit protection | Yes; per module, electronic | |
| Output current, max. | 0.7 A; Total current of all encoders (depending on IO-Link master supply via 1Us+) | |
| Power loss | ||
| Power loss, typ. | 2.4 W | |
| Digital inputs | ||
| Number of digital inputs | 16 | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 55 °C, max. | 16 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -30 to +5 V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 3 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| at "0" to "1", min. | 1.2 ms | |
| at "0" to "1", max. | 4.8 ms | |
| at "1" to "0", min. | 1.2 ms | |
| at "1" to "0", max. | 4.8 ms | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| IO-Link | ||
| IO-Link protocol 1.1 | Yes | |
| Transmission rate | 38.4 kBd (COM2) | |
| Cycle time, min. | 2.5 ms | |
| Size of process data, input per module | 2 byte | |
| Size of process data, output per module | 0 byte | |
| Supported IO-Link profiles | common profile | |
| Cable length unshielded, max. | 20 m | |
| Connection of IO-Link devices | ||
| Port type A | Yes | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Diagnoses | ||
| Short-circuit | Yes; Sensor supply to M; module by module | |
| Diagnostics indication LED | ||
| Channel status display | Yes; green LED | |
| for module diagnostics | Yes; green/red LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels and the power supply of the electronics | No | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -30 °C | |
| max. | 55 °C | |
| connection method | ||
| Design of electrical connection for the inputs and outputs | M12, 5-pin, A-coded | |
| Type of electrical connection for IO-Link | M12, 5-pin, A-coded | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 159 mm | |
| Depth | 40 mm | |
| Weights | ||
| Weight, approx. | 155 g | |
| Approvals / Certificates | ||
