Siemens - 6ES7141-6BF00-0AB0
Siemens - 6ES7141-6BF00-0AB0
Regular price
€156,20 EUR
Regular price
Sale price
€156,20 EUR
Couldn't load pickup availability
Low stock: 2 left

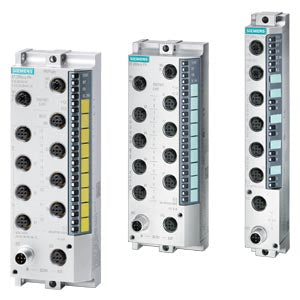

SIMATIC DP 8 DI DC 24V 4x M12
| General information | ||
| Vendor identification (VendorID) | 002AH | |
| Device identifier (DeviceID) | 0306H | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes | |
| power supply according to NEC Class 2 required | Yes | |
| Input current | ||
| Current consumption, typ. | 100 mA | |
| from supply voltage 1L+, max. | 4 A | |
| Encoder supply | ||
| Number of outputs | 4 | |
| 24 V encoder supply | ||
| Short-circuit protection | Yes; Electronic | |
| Output current, max. | 100 mA; per output | |
| Power loss | ||
| Power loss, typ. | 5.5 W | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| in groups of | 2 | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 60 °C, max. | 8 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 7 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| at "0" to "1", max. | typically 3 ms | |
| at "1" to "0", max. | typically 3 ms | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Interfaces | ||
| Transmission procedure | 100BASE-TX | |
| Number of PROFINET interfaces | 1 | |
| 1. Interface | ||
| Interface types | ||
| M12 port | Yes | |
| integrated switch | Yes | |
| PROFINET IO Device | ||
| Services | ||
| IRT with the option "high flexibility" | Yes | |
| Prioritized startup | Yes | |
| Interface types | ||
| M12 port | ||
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Transmission rate, max. | 100 Mbit/s | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFINET CBA | No | |
| PROFIsafe | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Open IE communication | ||
| TCP/IP | No | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Monitoring the supply voltage | Yes; green "ON" LED | |
| Wire-break in signal transmitter cable | Yes | |
| Short-circuit encoder supply | Yes; Per channel group | |
| Group error | Yes; Red/yellow "SF/MT" LED | |
| Potential separation | ||
| between the load voltages | Yes | |
| between load voltage and all other switching components | No | |
| between Ethernet and electronics | Yes | |
| Potential separation channels | ||
| between the channels | No | |
| Isolation | ||
| tested with | ||
| 24 V DC circuits | 707 V DC (type test) | |
| Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Standards, approvals, certificates | ||
| Use in hazardous areas | ||
| Explosion protection category for gas | ATEX II 3G Ex nA II T4 | |
| Explosion protection category for dust | ATEX II 3D Ex tc IIIC T90°C Dc | |
| connection method | ||
| Design of electrical connection | 4/5-pin M12 circular connectors | |
| Dimensions | ||
| Width | 30 mm | |
| Height | 200 mm | |
| Depth | 49 mm | |
| Weights | ||
| Weight, approx. | 550 g | |
| Approvals / Certificates | ||
