Siemens - 6ES7143-4BF00-0AA0
Siemens - 6ES7143-4BF00-0AA0
Regular price
€79,77 EUR
Regular price
Sale price
€79,77 EUR
Couldn't load pickup availability
Low stock: 1 left

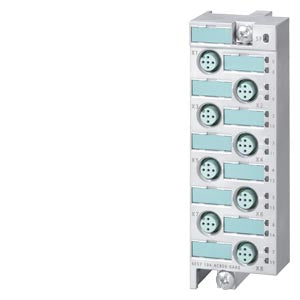

SIMATIC DP 4 DIO/4 DO DC 24V/0.5A
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity | |
| Load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| Short-circuit protection | Yes | |
| Reverse polarity protection | Yes; against destruction; load increasing | |
| Input current | ||
| from supply voltage 1L+, max. | 20 mA | |
| from load voltage 2L+ (without load), max. | 20 mA | |
| from backplane bus 3.3 V DC, max. | 30 mA | |
| Encoder supply | ||
| Short-circuit protection | Yes; per module, electronic | |
| Output current | ||
| up to 55 °C, max. | 1 A | |
| Power loss | ||
| Power loss, typ. | 3 W | |
| Digital inputs | ||
| Number of digital inputs | 4; 4 DIOs can be parameterized | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 55 °C, max. | 4 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 7 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| at "0" to "1", min. | 1.2 ms | |
| at "0" to "1", max. | 4.8 ms | |
| at "1" to "0", min. | 1.2 ms | |
| at "1" to "0", max. | 4.8 ms | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Digital outputs | ||
| Number of digital outputs | 8; 4 DO fixed, 4 DIO parameterizable | |
| in groups of | 4; 2 load groups for 4 outputs each | |
| Current-sourcing | Yes | |
| output type acc. to IEC 61131, type 0.5 | Yes | |
| Short-circuit protection | Yes; per channel, electronic | |
| Response threshold, typ. | 0.7 A | |
| Limitation of inductive shutdown voltage to | Typ. (L1+, L2+) -47 V | |
| Controlling a digital input | Yes | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 48 ¦ | |
| upper limit | 4 k¦ | |
| Output voltage | ||
| for signal "1", min. | 2L+ (-0,8 V) | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "0" residual current, max. | 0.5 mA | |
| Parallel switching of two outputs | ||
| for uprating | No | |
| for redundant control of a load | Yes | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz | |
| with inductive load, max. | 0.5 Hz | |
| on lamp load, max. | 1 Hz | |
| Total current of the outputs (per group) | ||
| all mounting positions | ||
| up to 55 °C, max. | 2 A | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Short-circuit | Yes; Short-circuit of outputs to ground; module by module | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Status indicator digital input (green) | Yes | |
| Status indicator digital output (green) | Yes | |
| Potential separation | ||
| between backplane bus and all other circuit components | Yes | |
| Potential separation digital inputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Potential separation digital outputs | ||
| between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Suitable for safety-related tripping of standard modules | Yes | |
| Highest safety class achievable for safety-related tripping of standard modules | ||
| Performance level according to ISO 13849-1 | PL d | |
| Category according to ISO 13849-1 | Cat. 3 | |
| SIL acc. to IEC 62061 | SIL 2 | |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 130 mm | |
| Depth | 35 mm | |
| Weights | ||
| Weight, approx. | 140 g | |
| Approvals / Certificates | ||
