Siemens - 6ES7143-5BF00-0BA0
Siemens - 6ES7143-5BF00-0BA0
Regular price
€76,54 EUR
Regular price
Sale price
€76,54 EUR
Couldn't load pickup availability
Low stock: 3 left

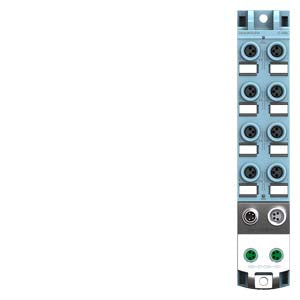

SIMATIC ET 200AL 4 DIQ/4 DQ DC 24V/0.5A 8x M8
| General information | ||
| Product type designation | DIQ 4+DQ 4x24VDC/0.5A | |
| HW functional status | FS06 | |
| Firmware version | V2.0.x | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | STEP 7 V13 SP1 or higher | |
| STEP 7 configurable/integrated from version | From V5.5 SP4 Hotfix 3 | |
| PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 | |
| PROFINET from GSD version/GSD revision | GSDML V2.3.1 | |
| Supply voltage | ||
| power supply according to NEC Class 2 required | No | |
| Load voltage 1L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up | |
| Load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes; against destruction; load increasing | |
| Input current | ||
| Current consumption (rated value) | 40 mA; 40 mA (1L+) / 20 mA (2L+); without load | |
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value | |
| from load voltage 2L+, max. | 4 A; Maximum value | |
| Encoder supply | ||
| Number of outputs | 4 | |
| 24 V encoder supply | ||
| Short-circuit protection | Yes; per module, electronic | |
| Output current, max. | 0.7 A; Total current of all encoders | |
| Power loss | ||
| Power loss, typ. | 2.5 W | |
| Digital inputs | ||
| Number of digital inputs | 4; Parameterizable as DIQ | |
| Source/sink input | P-reading | |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 55 °C, max. | 4 | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "1", typ. | 3.2 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| at "0" to "1", min. | 1.2 ms | |
| at "0" to "1", max. | 4.8 ms | |
| at "1" to "0", min. | 1.2 ms | |
| at "1" to "0", max. | 4.8 ms | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Digital outputs | ||
| Number of digital outputs | 8; 4 DQ fixed, 4 DIQ parameterizable | |
| in groups of | 4; 2 load groups for 4 outputs each | |
| Current-sourcing | Yes | |
| output type acc. to IEC 61131, type 0.5 | Yes | |
| Short-circuit protection | Yes; per channel, electronic | |
| Response threshold, typ. | 0.7 A | |
| Limitation of inductive shutdown voltage to | 2L+ (-47 V) | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 48 ¦ | |
| upper limit | 4 k¦ | |
| Output voltage | ||
| for signal "1", min. | L+ (-0.8 V) | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "0" residual current, max. | 0.5 mA | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz | |
| with inductive load, max. | 0.5 Hz | |
| on lamp load, max. | 1 Hz | |
| Total current of the outputs | ||
| Current per group, max. | 2 A | |
| Cable length | ||
| unshielded, max. | 30 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Interrupts/diagnostics/status information | ||
| Substitute values connectable | Yes; channel by channel, parameterizable | |
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Diagnoses | ||
| Short-circuit | Yes; Outputs to M; encoder supply to M; module by module | |
| Diagnostics indication LED | ||
| Channel status display | Yes; green LED | |
| for module diagnostics | Yes; green/red LED | |
| For load voltage monitoring | Yes; green LED | |
| Potential separation | ||
| between the load voltages | Yes | |
| Potential separation channels | ||
| between the channels, in groups of | 4; DIQ channels are isolated from DQ channels | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | No; DIQ channels are non-isolated and DQ channels are isolated from supply voltage 1L+ | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Standards, approvals, certificates | ||
| Suitable for safety-related tripping of standard modules | Yes; from FS01 | |
| Highest safety class achievable for safety-related tripping of standard modules | ||
| Performance level according to ISO 13849-1 | PL d | |
| Category according to ISO 13849-1 | Cat. 3 | |
| SIL acc. to IEC 62061 | SIL 2 | |
| remark on safety-oriented shutdown | https://support.industry.siemens.com/cs/de/en/view/39198632 | |
| product functions / security / header | ||
| signed firmware update | Yes | |
| data integrity | Yes | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -30 °C | |
| max. | 55 °C | |
| Altitude during operation relating to sea level | ||
| Ambient air temperature-barometric pressure-altitude | Up to max. 5 000 m, at installation height > 2 000 m additional restrictions | |
| connection method | ||
