Siemens - 6ES7144-4FF01-0AB0
Siemens - 6ES7144-4FF01-0AB0
Regular price
€153,93 EUR
Regular price
Sale price
€153,93 EUR
Couldn't load pickup availability
Low stock: 1 left

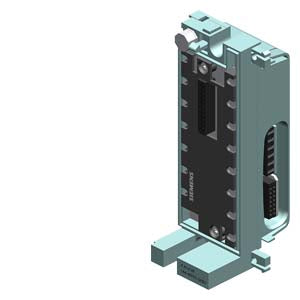

SIMATIC DP 4 AI U HF
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction | |
| Input current | ||
| from supply voltage 1L+, max. | 40 mA; Typical | |
| from backplane bus 3.3 V DC, max. | 12 mA; Typical | |
| Encoder supply | ||
| Number of outputs | 4 | |
| Short-circuit protection | Yes; per module, electronic to frame | |
| Output current | ||
| up to 55 °C, max. | 1 A | |
| Power loss | ||
| Power loss, typ. | 1.1 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 8 byte | |
| Analog inputs | ||
| Number of analog inputs | 4 | |
| permissible input voltage for voltage input (destruction limit), max. | 35 V | |
| Cycle time (all channels) max. | 5 ms | |
| Input ranges (rated values), voltages | ||
| 0 to +10 V | Yes | |
| 1 V to 5 V | Yes | |
| -10 V to +10 V | Yes | |
| -5 V to +5 V | Yes | |
| Cable length | ||
| shielded, max. | 30 m | |
| Analog value generation for the inputs | ||
| Measurement principle | integrating | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 15 bit; 15 bit + sign at ±10 V, at ±5 V; 15 bit at 0 V to 10 V, at 1 V to 5 V | |
| Integration time (ms) | 0,3 / 16,7 / 20 / 60 | |
| Interference voltage suppression for interference frequency f1 in Hz | 16,67 / 50 / 60 / 3 600 | |
| Conversion time (per channel) | 1.1 ms | |
| Smoothing of measured values | ||
| parameterizable | Yes | |
| Step: None | Yes; 1x cycle time | |
| Step: low | Yes; 4x cycle time | |
| Step: Medium | Yes; 16x cycle time | |
| Step: High | Yes; 64x cycle time | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| Errors/accuracies | ||
| Linearity error (relative to input range), (+/-) | 0.0075 % | |
| Temperature error (relative to input range), (+/-) | 0.00075 %/K | |
| Crosstalk between the inputs, min. | -70 dB | |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.004 % | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.1 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.075 % | |
| Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency | ||
| Series mode interference (peak value of interference < rated value of input range), min. | 60 dB | |
| Common mode interference (USS < 2.5 V), min. | 80 dB; Interference voltage < 10 V | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Hardware interrupt | Yes; (limit value alarm), can be parameterized for channel 0 | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Wire-break | Yes; at 1 to 5 V | |
| Short-circuit | Yes; at 1 to 5 V | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Potential separation | ||
| Potential separation analog inputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Permissible potential difference | ||
| Between the inputs and MANA (UCM) | 10 Vpp AC | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 130 mm | |
| Depth | 35 mm | |
| Weights | ||
| Weight, approx. | 150 g | |
| Approvals / Certificates | ||
