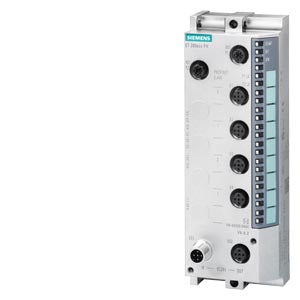

Siemens - 6ES7145-6HD00-0AB0
Siemens - 6ES7145-6HD00-0AB0
Regular price
€305,61 EUR
Regular price
Sale price
€305,61 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC DP 4 AO U/I 4x M12 PN
| General information | ||
| Vendor identification (VendorID) | 002AH | |
| Device identifier (DeviceID) | 0306H | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes | |
| power supply according to NEC Class 2 required | Yes | |
| Input current | ||
| Current consumption, typ. | 280 mA | |
| Actuator supply | ||
| Number of outputs | 4 | |
| Short-circuit protection | Yes; Electronic at 1.4 A | |
| Output current | ||
| Rated value | 1 A; Maximum | |
| Power loss | ||
| Power loss, typ. | 5.5 W | |
| Analog outputs | ||
| Number of analog outputs | 4 | |
| Voltage output, short-circuit protection | Yes | |
| Voltage output, short-circuit current, max. | 30 mA | |
| Current output, no-load voltage, max. | 20 V | |
| Output ranges, voltage | ||
| 0 to 10 V | Yes | |
| 1 V to 5 V | Yes | |
| -10 V to +10 V | Yes | |
| Output ranges, current | ||
| 0 to 20 mA | Yes | |
| -20 mA to +20 mA | Yes | |
| 4 mA to 20 mA | Yes | |
| Connection of actuators | ||
| for voltage output two-wire connection | Yes | |
| for current output two-wire connection | Yes | |
| Load impedance (in rated range of output) | ||
| with voltage outputs, min. | 1 k¦ | |
| with voltage outputs, capacitive load, max. | 1 µF | |
| with current outputs, max. | 600 ¦ | |
| with current outputs, inductive load, max. | 1 mH | |
| Destruction limits against externally applied voltages and currents | ||
| Voltages at the outputs towards MANA | 28.8 V permanent, 35 V for max. 500 ms | |
| Cable length | ||
| shielded, max. | 30 m | |
| Analog value generation for the outputs | ||
| Analog value display | SIMATIC S7 format | |
| Conversion principle | Resistor network | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Conversion time (per channel) | 1 ms | |
| Settling time | ||
| for resistive load | 2 ms | |
| for capacitive load | 1.8 ms | |
| for inductive load | 2 ms | |
| Errors/accuracies | ||
| Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) | U: ±0.6 mVrms; I: ±0.4 nArms | |
| Linearity error (relative to output range), (+/-) | 0.02 % | |
| Temperature error (relative to output range), (+/-) | U: 0.001%/°C; I: 0.0025%/°C | |
| Crosstalk between the outputs, min. | 70 dB | |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.008 % | |
| Interfaces | ||
| Transmission procedure | 100BASE-TX | |
| Number of PROFINET interfaces | 1 | |
| 1. Interface | ||
| Interface types | ||
| M12 port | Yes | |
| integrated switch | Yes | |
| PROFINET IO Device | ||
| Services | ||
| IRT with the option "high flexibility" | Yes | |
| Prioritized startup | Yes | |
| Interface types | ||
| M12 port | ||
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Transmission rate, max. | 100 Mbit/s | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFINET CBA | No | |
| PROFIsafe | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Open IE communication | ||
| TCP/IP | No | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Monitoring the supply voltage | Yes; green "ON" LED | |
| Wire-break | Yes; Channel-by-channel with current output | |
| Short-circuit | Yes; Channel-by-channel with voltage output | |
| Group error | Yes; Red/yellow "SF/MT" LED | |
| Potential separation | ||
| between the load voltages | Yes | |
| between load voltage and all other switching components | No | |
| between Ethernet and electronics | Yes | |
| Potential separation channels | ||
| between the channels | No | |
| Permissible potential difference | ||
| between M internally and the outputs | 10 Vpp AC | |
| Isolation | ||
| tested with | ||
| 24 V DC circuits | 707 V DC (type test) | |
| Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Standards, approvals, certificates | ||
| Use in hazardous areas | ||
| Explosion protection category for gas | ATEX gas explosion protection, Zone 2 | |
| Explosion protection category for dust | ATEX dust explosion protection, Zone 22 | |
| connection method | ||
| Design of electrical connection | 4/5-pin M12 circular connectors | |
| Dimensions | ||
| Width | 60 mm | |
| Height | 175 mm | |
| Depth | 49 mm | |
| Weights | ||
| Weight, approx. | 930 g | |
| Approvals / Certificates | ||
