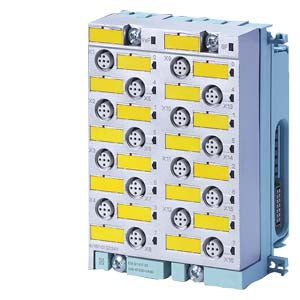

Siemens - 6ES7148-4FC00-0AB0
Siemens - 6ES7148-4FC00-0AB0
Regular price
€349,27 EUR
Regular price
Sale price
€349,27 EUR
Couldn't load pickup availability
12 in stock
SIMATIC DP 4/8 F-DI/4 F-DO DC 24V/2A PROFIsafe
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| power supply according to NEC Class 2 required | No | |
| Input current | ||
| from supply voltage 1L+, max. | 100 mA; Typical | |
| from load voltage 2L+ (without load), max. | 50 mA; Typical | |
| from backplane bus 3.3 V DC, max. | 20 mA | |
| Power loss | ||
| Power loss, typ. | 5.8 W | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Input current | ||
| for signal "1", typ. | 3.7 mA | |
| Digital outputs | ||
| Number of digital outputs | 4 | |
| Short-circuit protection | Yes | |
| Controlling a digital input | Yes; digital output, according to IEC 61131-2, type 2 | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| Standards, approvals, certificates | ||
| Highest safety class achievable in safety mode | ||
| Performance level according to ISO 13849-1 | e | |
| SIL acc. to IEC 61508 | 3 | |
| Dimensions | ||
| Width | 90 mm | |
| Height | 130 mm | |
| Depth | 65 mm | |
| Approvals / Certificates | ||
